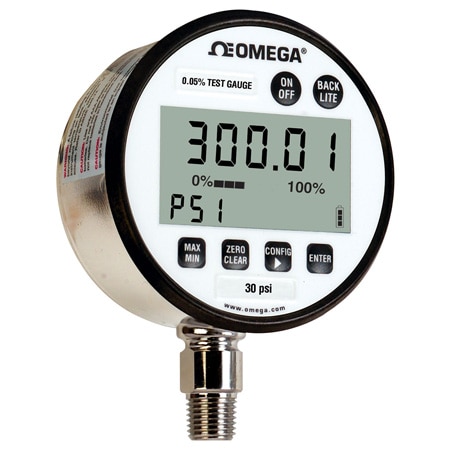

Advanced, High Accuracy, Digital Pressure Gauge with NEMA 4X Case OMEGA DPG7000-7K (Gauge, 7000 psi, NPT Male, 1/4 in)

Dial Dia: 85 mm

Calibration: Zero and Span (password protected)

Auto-Shutoff: Five Options: Never, 2, 5, 15, 30 min

Battery life: 1000 hr

Display Type: LCD

Accuracy Note: Total error band (TEB) including hysteresis, linearity, repeatablilty and temperature from -18 to 66°C (0 to 150°F)

Pressure Type: Gauge

Pressure, Max: 7000 psi

Pressure, Min: 0 psi

Accuracy Class: < 0.1%

Thermal Effects: -18 to 63°C (0 to 150°F); included in accuracy specification

Calibration Note: 10 point individual calibration chart, standard for DPG7000; optional for DPG7010 and DPG7025 models

Keypad Functions: On/Off: Manually turns unit on and off Backlight: Manually turns backlight on and off Minimum/Maximum: Stores minimum and maximum values when displayed Zero/Clear: Zeros display or clears minimum and maximum values when displayed Enter: Selects items in configuration menu Config: Configuration mode; allows scrolling through configuration menus to select available options.

Number of Digits: 5

Display Type Note: Type: LCD, with bar graph; backlight standard Display Digits: 5, 99,999 counts Character Height: 16.7 mm (0.66") Engineering Units: psi, inHg, inH2O, ftSW, Bar, mBar, kPa, mPa, mmHg, cmH2O, mmH2O, kg/cm2 Update Rate: Four Options; 10x/sec, 5x/sec, 2x/sec, 1x/sec Dampening: Five Options; None, average 2, 4, 6, 8 readings Language: Seven Languages; English, Spanish, French, Italian, German, Portuguese, Dutch Backlight: Five Options; On/off, 10 sec., 30 sec., 1 min., 5 min. Zero Disable: Allows for disabling of Zero button Contrast: Seven available options Disable: Allows for “lock-out” of CONFIG options

Pressure Accuracy: ± 0.05 %

Supply Power Type: Battery

Connection Location: Lower

Number of Batteries: 3

Battery Size and Type: Alkaline AAA

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Storage Temperature, Max: 82 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 63 °C

Operating Temperature, Min: -18 °C
