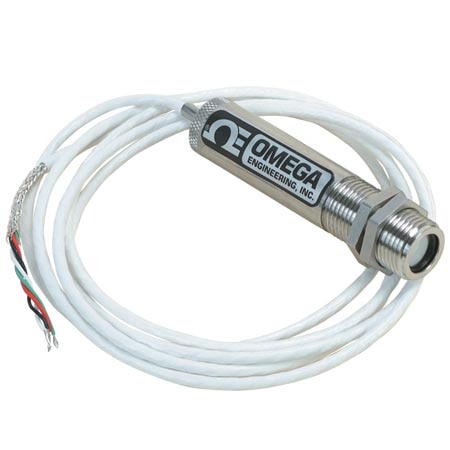

Miniature IR Infrared Sensor Transmitter -18 to 538 °C OMEGA OS136A-2-MV-F (6:1, 538 °C, 10 mV/°F)
Hãng sản xuất: OMEGA Model: OS136A-2-MV-F - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
Weight: 181 g
Laser Power: <1 mW
Cable Length: 6 ft
Field of view: 6:1
Output Detail: 10 mV/°F
Output Signal: Millivolt
Repeatability: 0.01
Response Time: 150 ms
Thermal shock: About 30 minutes for 25°C abrupt ambient temperature change
Alarm Setpoint: Adjustable, 0 to 100%
Housing Length: 89 mm
Supply Current: 50 mA
Supply Voltage: 12 to 24 Vdc
Emissivity Note: Fixed at 0.95
Emissivity, Max: 0.95
Emissivity, Min: 0.5
Housing Material: 316 Stainless Steel
Electrical Output: 10 mV/°F
Enclosure Ratings: IP66, NEMA Type 4
Field of View Note: 6 to 1 (distance to spot size)
Repeatability Note: 1% of rdg
Response Time Note: 150 msec, 0 to 63% of final value
Warm-Up Period, Max: 2 m
Warm-Up Period, Min: 1 m
Housing Material Note: 316 SS, NEMA 4 (IP66) rated
Housing Outer Diameter: 19 mm
Laser Wavelength Color: 630 to 670 nm
Relative Humidity Note: Less than 95% RH, non-condensing
Relative Humidity, Max: 0.95
Spectral Response, Max: 14 μm
Spectral Response, Min: 5 μm
Operating Distance, Max: 9.1 m
Process Temperature, Max: 538 °C
Process Temperature, Min: 149 °C
Operating Temperature, Max: 70 °C
Operating Temperature, Min: 0 °C
