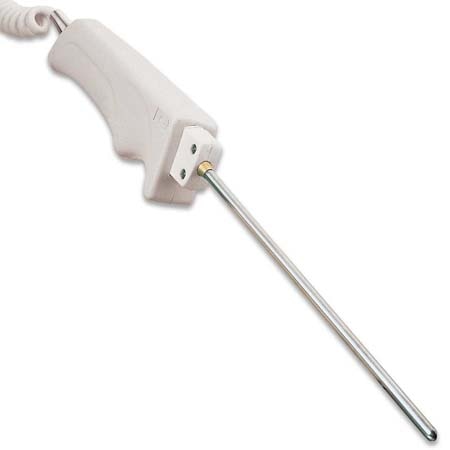

Handheld RTD probes with Integral Handle & Retractable Cable OMEGA PRS-GP-100-E-24-OTP-M (3-Prong Standard Male Thermocouple Connector, 600 °C, Class B)

Accuracy: Class B

Insulation: TPE

Probe Type: Immersion Probe

Wire Gauge: 28 AWG

Cable Length: 5 ft

Probe Length: 24 in

Accuracy Note: Class B per IEC60751

Probe Diameter: 0.1875 in

Number of Wires: 3

Sheath Material: 304 Stainless Steel

Nominal Resistance: 100 Ω

Electrical Connection: 3-Prong Standard Male Thermocouple Connector

Handle Temperature, Max: 150 °C

Handle Temperature, Min: 0 °C

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 600 °C

Process Temperature, Min: -200 °C
