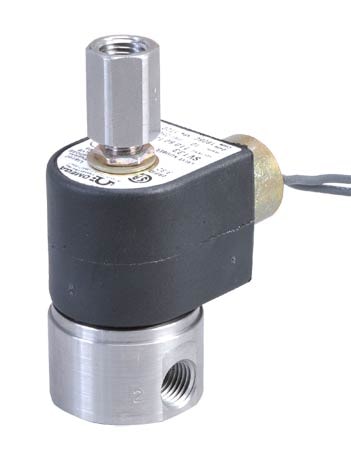

2-Way, NO, Stainless Steel, General Purpose Solenoid Valves OMEGA SV132 (0.11 gal/min, 1/4 in, NPT Male, 1/16 in, Direct Acting, Normally Open)
Hãng sản xuất: OMEGA Model: SV132 - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
Weight: 500 g
Mounting: Pipe mounting, any direction
Cv Factor: 0.11 gal/min
Materials: Stainless Steel, FKM
Coil Power: 10 W
Duty Cycle: 100%
Media Type: N/A
Valve Type: Direct Acting
Orifice Size: 1/16 in
Supply Voltage: 120 Vac
Valve Position: Normally Open
Static Pressure: 1.5 times max psid
Enclosure Ratings: IP65, NEMA Type 4
Materials, Wetted: Copper, FKM, Stainless Steel
Supply Power Note: 10 W, 120 Vac coils, 50 to 60 Hz
Open Response Time: 4 to 15 ms
Close Response Time: 4 to 15 ms
Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Operating Pressure, Max: 325 psi
Operating Pressure, Min: 0 psi
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Process Temperature, Max: 116 °C
Operating Temperature, Max: 50 °C
Operating Temperature, Min: -9 °C
