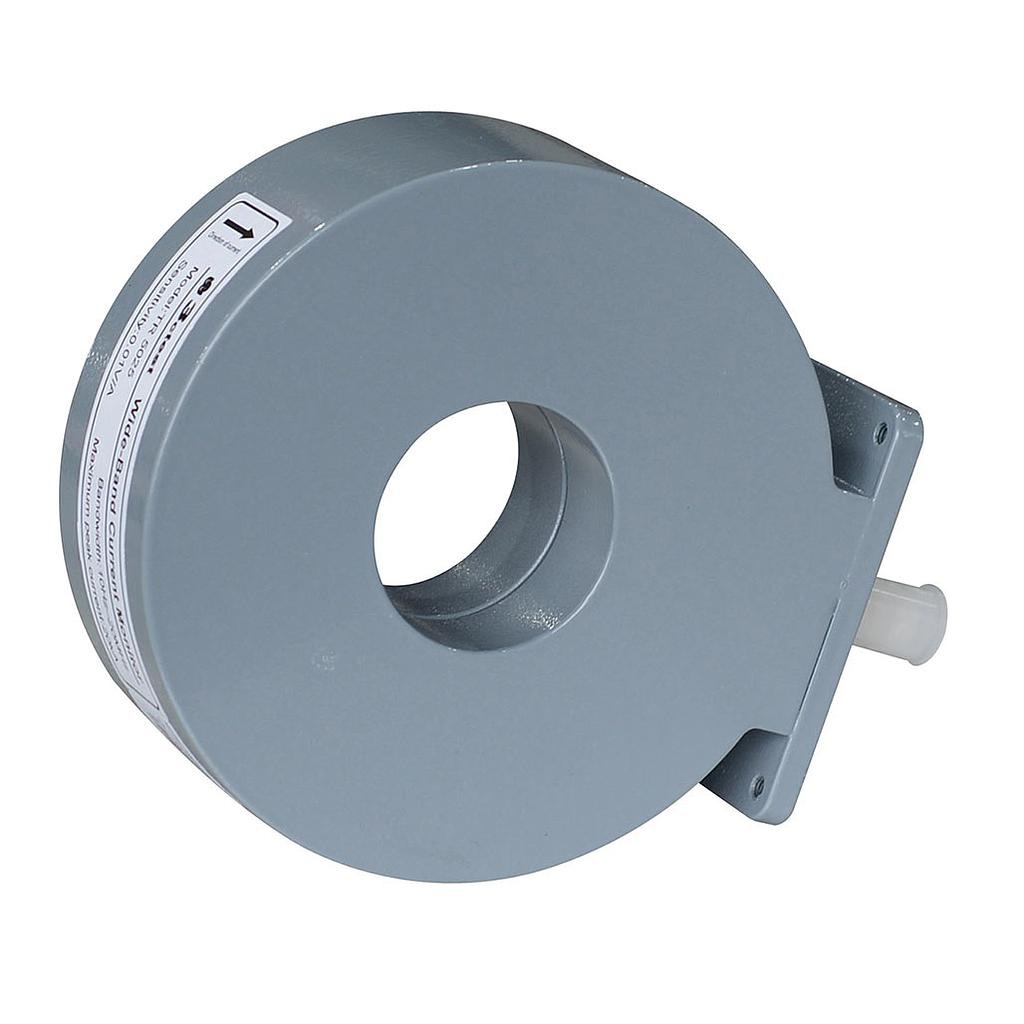

3ctest CM 0302M 宽带电流监测器 (200,000 A, 5 Hz~2 MHz)

Sensitivity: 0.001 V/A

Output Resistance: 50 Ω

Max. Peak Current: 200,000 A

Max. rms Current: 520 A

Rise Time: 175 ns

Current Time Product: 10 A•s

Low Frequency 3 dB cut-off: 5 Hz

High Frequency 3 dB cut-off: 2 MHz

Inner Diameter: 40 mm

Outer Diameter: 116 mm

Thickness: 40 mm

Interface Type: BNC type

Operating Temperature: 0 ℃ ~ 65 ℃

Weight : 1 kg
