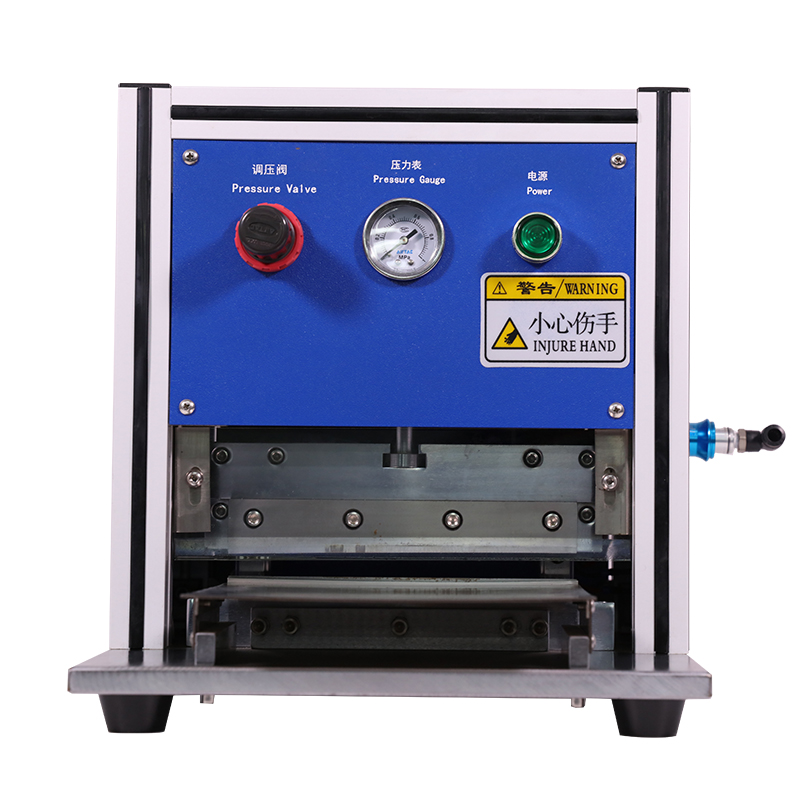

ACEY ACEY-PCM200 Portable Pneumatic Battery Cutting Machine For Pouch Cell Case Trimming

Cutter length: 300mm

Cutting width: 2～10mm margin can be adjusted

Cutter life: 10 million times/grinding

Speed: Air pressure 600 times/hour

Power: AC220V/50Hz, 100W

Air compressed air source: 0.5MPa～0.7MPa

Dimensions: L325 × W200 × H350mm

Equipment weight: 45Kg

Shangyin linear slide rail group is used for guiding, with high guiding precision to ensure zero clearance between upper and lower cutters and long service life.

The upper and lower cutters are made of high-speed steel, with sharp blades.

Built-in pressure gauge, can observe and accurately control the size of trimming pressure.

The cylinder controls the cutter to trim the battery edge, which is easy to be automated, and the trimming width can be adjusted.

The trimming air pressure and speed can be set and adjusted.

Set the product positioning tray to facilitate the positioning and placement of the battery.

Adopt foot pedal operation switch, which is reliable, convenient and fast.

The frame is assembled with profiles and baking varnish sealing plates, the equipment structure is simple, compact, and the appearance is exquisite and beautiful.
