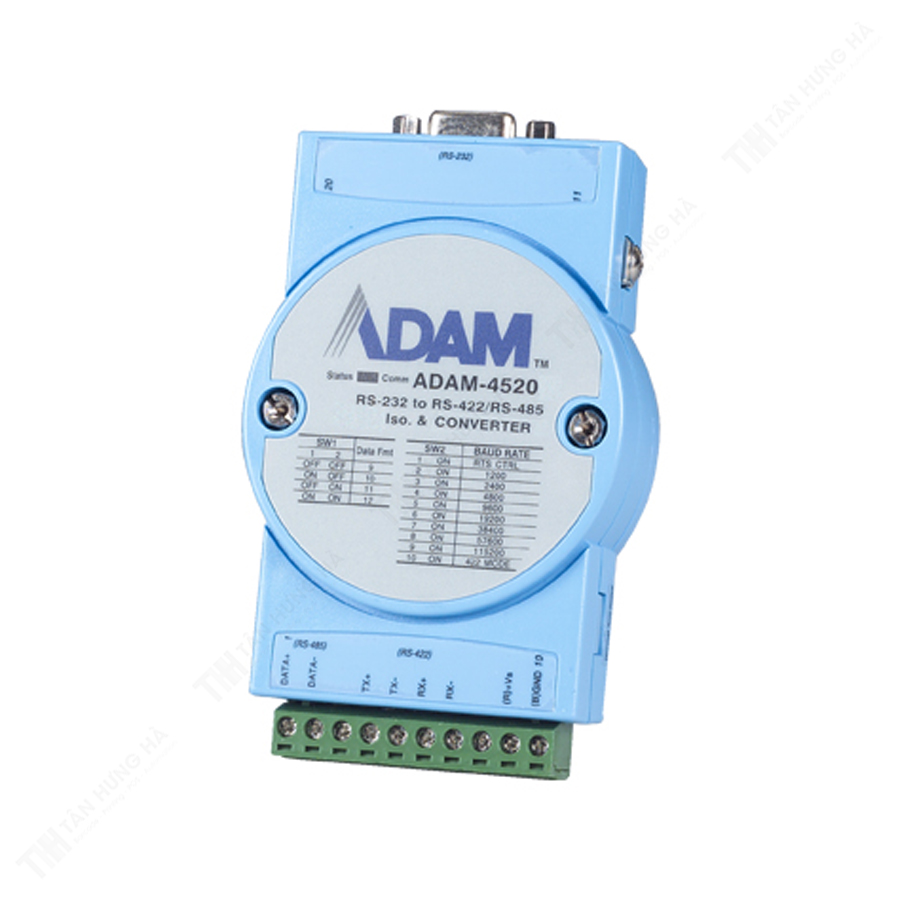

Product Type: Isolated RS-232 to RS-422/485 Converter
Input: RS-232 (DB9 Female)
Output: RS-422/485 (plug-in terminal block)
Signal Isolation: 3000 VDC
Data Transmission Rate: 300 bps to 115.2 kbps
Transmission Distance: Up to 1.2 km (4000 ft) with RS-485
Power Supply: 10-30 VDC
Power Consumption: Typical: 0.8 W @ 24 VDC, Max.: 1 W @ 24 VDC
Connection: 1 x plug-in terminal block (#14 ~ 22 AWG)(RS-422/485); 1 x DB9-F (RS-232)
Operating Temperature: -10°C to 70°C
Dimensions: 70 x 112 x 25 mm
