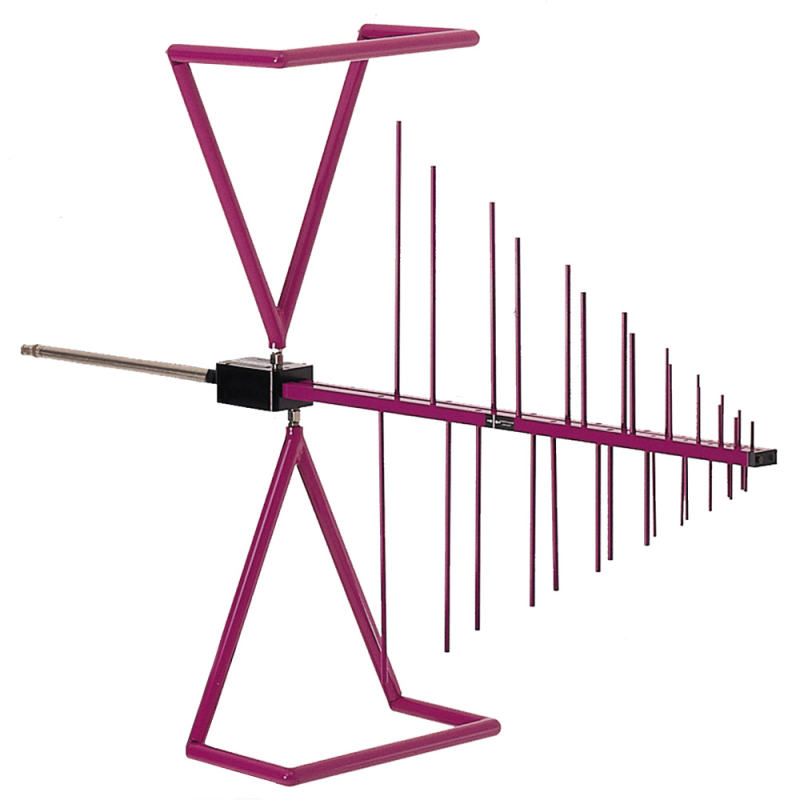

AMETEK CTS CBL 6141B Compact X-Wing BiLog Antenna (30 MHz - 2 GHz)

Frequency range: 30 MHz to 2 GHz

Typical gain: 4 dB (200 MHz to 1.5 GHz)

Impedance (nominal): 50 Ω

Maximum continuous power: 300 W (80 - 2000 MHz)

Connector: N type female

VSWR: Average 2:1

Size antenna (L x H x W in mm): approx. 1310 X 970 X 410 (see drawing)

Weight: approx. 3.5 kg

Recommended tripod: BTP 6020A
