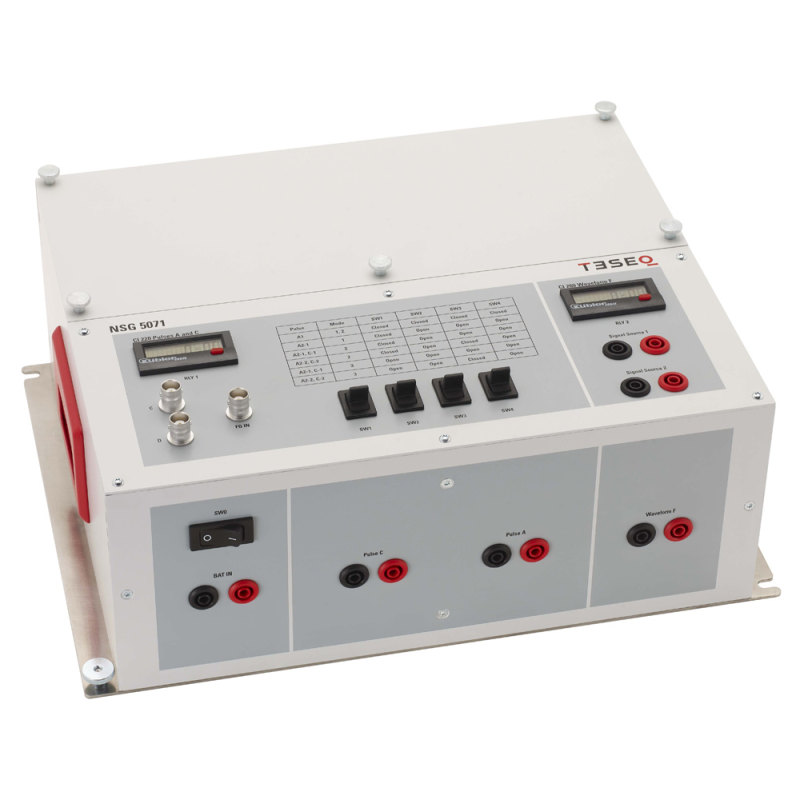

AMETEK CTS NSG 5071 Inductive Switch Transient Test Circuit (10 A; 30 A; 15 V)

Critical components used( as definied by the standard):

Potter and Brumfi eld KUP-14A15-12

5 μH Osborn Transformer PN 8745

100 mH Osborn Transformer PN 32416

DC current (Imax):

10 A with supplied relay

Up to 30 A with user-installed relay

DC voltage (Umax): 15 V
