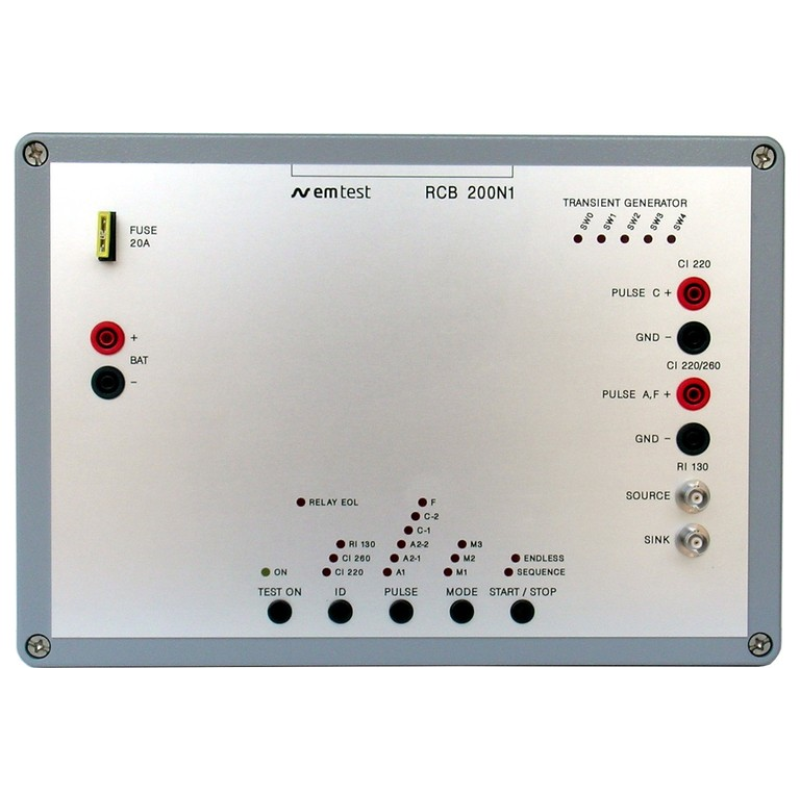

AMETEK CTS RCB 200N1 Transient Immunity Test Generator (CI 220; CI 260; RI 130)

RCB 200N1:

Resistor R1: 51 ohms, 25W

Resistor R2: 220 ohms ± 5%, 2W

Resistor R3: 33 ohms ± 5%, 10W

Resistor R4: 6 ohms ± 5%, 50W

Capacitor C1: 100 nF capacitor, 400V

Inductor L1: 5 uH inductor (Osborne transformer part no. 8745)

Inductor L2: 100 mH inductor (Osborne transformer part no. 32416)

Diode D1: Zener diode, 39V, 5W

Transistor Q1: NPN transistor

SW0 - SW4: Single Throw Switch

RLY1: 12 volt AC relay, NC contact used (Potter&Brumfield KUP-14A15-12)

Input: 4mm safety lab connectors for DC supply (e.g. battery or VDS 200x)

Trigger: External trigger input (BNC)

Outputs: 4mm safety lab connectors for CI 220 and CI 260 testing; 50 ohm BNC connectors for RI 130 testing

LEDs: Indiaction of the

- TEST ON status

- Test (ID)

- Pulse

- Mode

- Sequence or endless

- Switching status (SW0 - SW4)

- Relay EOL (end of life reached)

Dimensions: 330mm x 230mm x 115mm

Weight: approx 7.5kg

Fuse: 20A for DUT supply current

Protection: Electronically protected against overvoltage and reversed polarity
