AMETEK CTS VAR 3005A-S16 Single Phase Motor Variac (0 ~ 260 V; 16 A; 0 - 10 VDC)

Voltage Source For Dips, Interrupts And Variations Testing

Output voltage:

0 – 260 V, 16 A @230 V supply voltage

0 – 130 V, 16 A @115 V supply voltage

Max input voltage: max. 250 VAC

Frequency: 50 Hz / 60 Hz

Output voltage:

0 – 130 V @115 V supply voltage

0 – 260 V @230 V supply voltage

0 – 275 V @250 V supply voltage

Output current: max. 16 A

Output power: 0 – 4.160 VA

Output PF 1: Nominal mains supply

Output PF 2: 0 V – maximum output voltage (depending on supplied mains supply voltage)

Output connectors: 4 mm safety lab connectors; PF1, PF2, Neutral and PE

Controls

Mains switch: On / Off for the output voltage

Control voltage: Analog 0 – 10 V DC (0 V to max. output voltage)

Slew rate: < 2 seconds, full range

Dimensions: 19" / 6 HU, 266 mm x 485 mm x 400 mm (HxLxW)

Weight: app. 27 kg

Supply voltage: 115 / 230 V

Fuses: 20 A (PF1), 16 A (PF2)

Temperature: 10 °C to 35 °C

Humidity: 30 % to 75 %, non-condensing

Atmospheric pressure: 86 kPa (860 mbar) to 106 kPa (1.060 mbar)

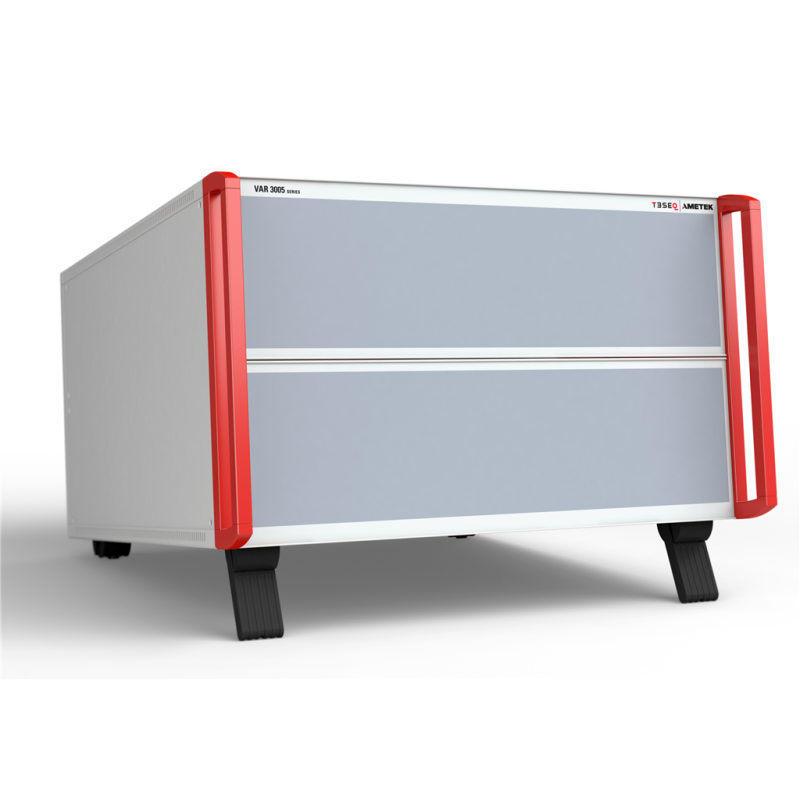

*Image for illustrative purposes only
