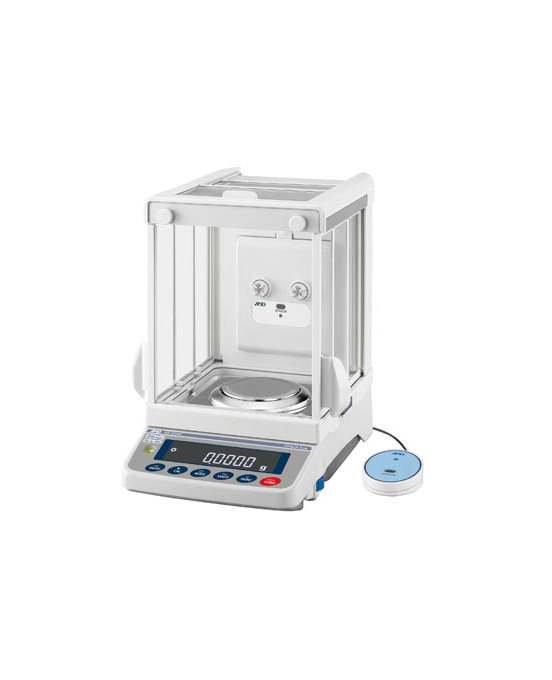

AND GX-124AE Analytical Balance (122 g, 0.0001 g)

Capacity: 122 g

Readability: 0.0001 g

Repeatability (std. deviation): 0.0001 g

Minimum weight (typical): 120 mg

Linearity: ±0.0002 g

Stabilization Time (when set to FAST under a good environment): Approx. 1.5 sec (100 g)

Sensitivity drift: ±2 ppm/°C (10 to 30 °C/50 to 86 °F, when automatic self calibration is OFF)

Operating environment: 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)

Display refresh rate: 5 times/sec, 10 times/sec or 20 times/sec

Units of measure: mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit

Counting mode

Minimum unit mass: 0.0001 g

Number of samples: 5, 10, 25, 50 or 100 pieces

Percent mode

Minimum 100% reference mass: 0.0100 g

% readability: 0.01%, 0.1% or 1% (depends on the reference mass stored)

Communication interface: RS-232C and USB

Calibration

Type GX= Internal GF= External

Weighing pan size: Ø90 mm

External dimensions: 259 (W) × 358 (D) × 332 (H) mm (including the large glass breeze break)

Net weight: Approx. 7 kg

Power supply / consumption: AC adapter / approx. 30 VA

* AE versions comes standard with built in fanless ionizer with external touchless sensor.
