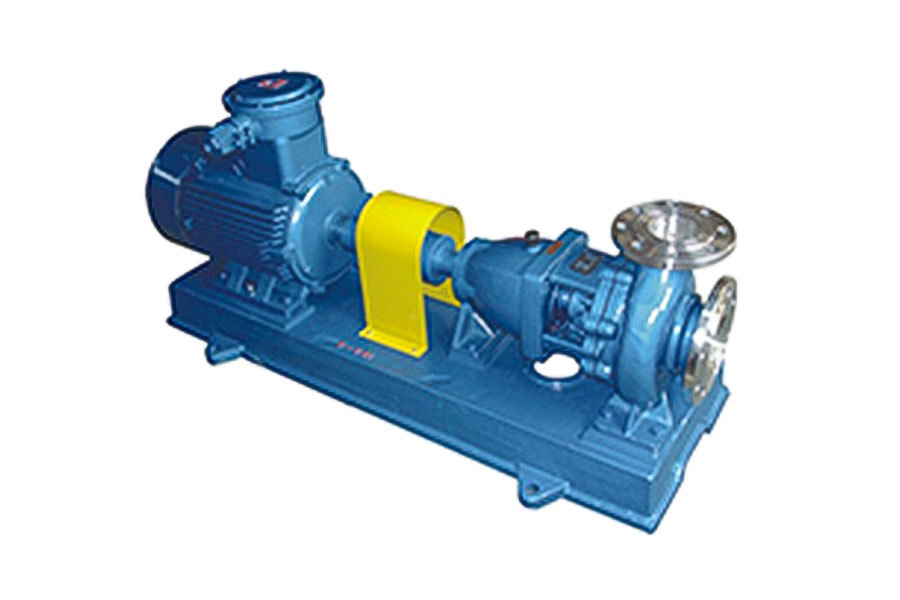

Bangpu IH Single-stage chemical pump (6.3-400m3/h)

Capacity: 6.3–400 m³/h

Head: 5–125 m

Medium temperature: –20 ℃ – 105 ℃

Maximum pressure: ≤16 bar

Product features: IH single-stage single-suction cantilever chemical centrifugal pump is an energy-saving and replacement product to replace the F-type corrosion-resistant centrifugal pump. The temperature of the medium conveyed by the IH pump is generally -20°C to 105°C. If necessary, appropriate cooling measures can be taken to convey higher temperature liquids. ◇ Wide performance range ◇ High efficiency ◇ Good anti-cavitation performance ◇ Easy maintenance

Flow range: Q=6.3～400m3/h

Lift range: H=5~125m

Conveying temperature: -20-105℃ Suction pressure: ≤0.3MPa

Sealing form: packing seal, mechanical seal

Material: 304, 316, 316L, 317LIH types can be selected from HT200, HT250, QT500, QT600, ZG230-450, ZG270-500, 321, 304, 304L, 316, 316L, 317L, 904L, CD4, etc.

HF type: Fluoroplastic alloy
