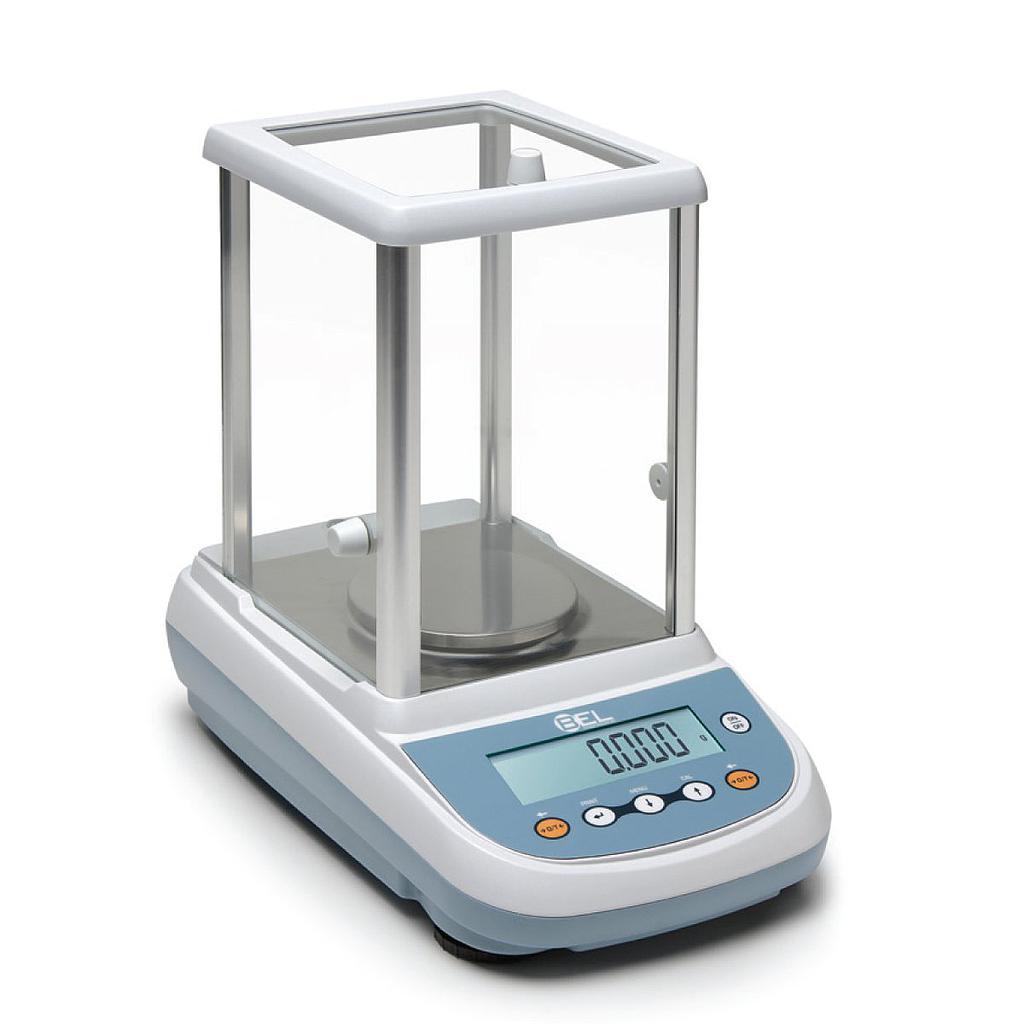

BEL Engineering L203 Precision Balance (210g; 0.001g)

Capacity [Max]: 210g

Resolution [d]: 0.001g

Calibration: External

Pan Size: Ø 110mm

Linearity: ±0.003g

Repeatability: 0.6mg

Response Time (sec.): ≤3

Verification: N/A

Minimum Load: 20mg

Display: LCD

Tare Range (Subtractive): 210g

Span Drift In +10…+30°C: ±4ppm/°C

Interface: RS232

Database Capacity: -

Windshield Type And Dimensions: Glass Circular / Ø160 x 70mm

Working Temperature: 5 - 35°C

Power Supply: 110 - 230VAC, 50/60Hz, output 9VDC, 1.2A, 10VA

Power Consumption (Max): 1W

Calibrates With (Class): 100g (F1)

Balance Dimensions (W x L x H): 215 x 345 x 155mm

Net Weight / Gross Weight, Approx.: 3.3 / 4.5kg
