Measurement range: 0-200μm
Measurement accuracy: ±5%
Control method: Large touch screen
Memory: 10GB (expandable)
Cycle measurement time: 2 minutes
Supports: Single / Wide channel grind gauge (0-25μm,0-50μm,0-100μm), standard equipped with one gauge(Optional)
Operation temperature: 10℃~40℃
Connection port: USB, VGA
Introduction:
Paint, coatings and chemical manufactures know that insufficiently or over-ground material will cause loss of production time, higher costs. People are used to inspect the fineness by a traditional manual method, it is difficult to observe the fineness result correctly for a same sample under different operators because the fineness is micron level and causes difference between true particles and air bubbles or erroneous matter.
With technology innovation and improvement, BEVS developed the advanced Automated Particle Analyzer which can automatically draw down the sample on the grind gauge, generating the image by a high resolution camera under the light source, the image is processed by using a customized software to generate the rating on the touch screen. BEVS Automated Particle Analyzer can be ensured that repeatability and accuracy for the testing result, avoiding human errors and greatly improving production efficiency.
Features:
Automatically analyze fineness to avoid human errors
Automatically draw down coatings to avoid operation errors
Built-in computer operating system
Simple operation by touch screen
Easy to analyze particle distribution
Easy to view image
Big database to save parameter setting of various coatings
Quickly take a photo in 5 seconds to avoid sample dry
VGA port available to connect other display screen
Standard:
ISO 1524
Order Information:

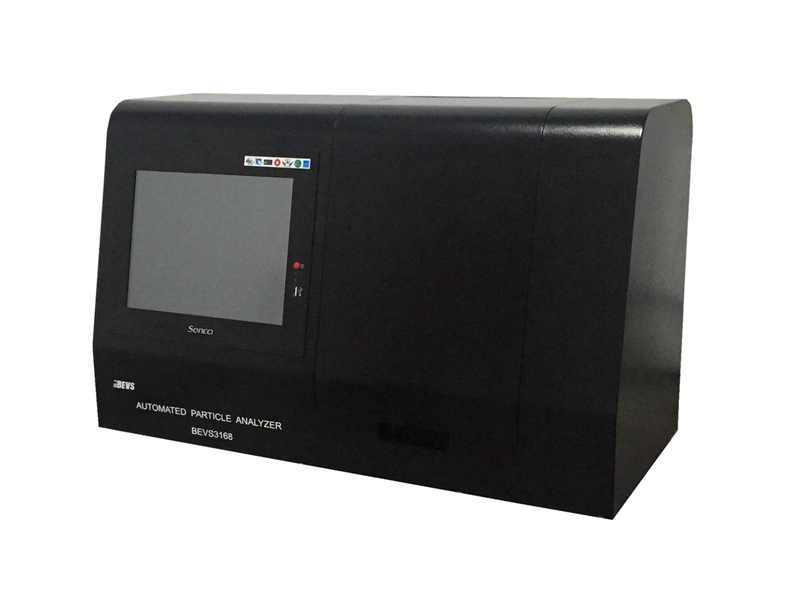

BEVS 3168 Automated Particle Analyzer
Datasheet
