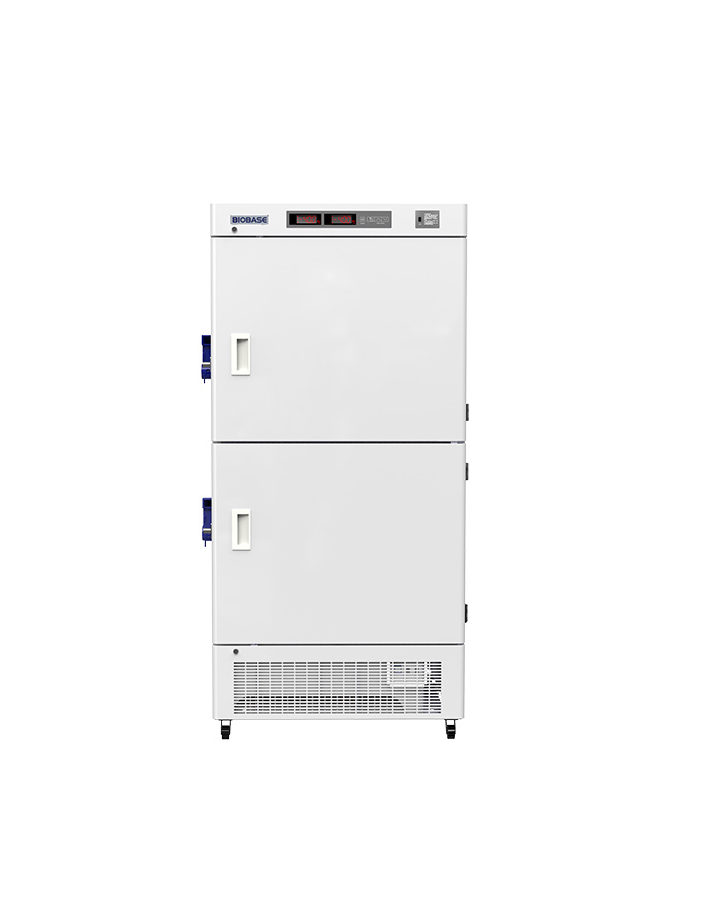

BIOBASE BDF-40V528D Freezer (-15~-40℃)

Capacity: 528L

Temp. Range: -15~-40℃

Temp. Accuracy: 0.1℃

Temp. Uniformity: ≤4℃

Temp. Stability: ≤4℃

Recovery Time(Recover to -37℃ in an ambient temp. of 25℃): ≤30min

Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃): ≤3h

Control System: Microprocessor control

Display: LED display

Alarm: High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)

Refrigeration Type: Direct-cooling

Refrigerant: Upper chamber: R290, 63g; Lower chamber: R290, 63g

Compressor: International famous brand compressor/2

Condenser&Evaporator: Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator

Defrost: Manual defrost

Construction: Polyurethane cyclopentane foam

Material:

Internal Material: 304 stainless steel

External Material: Sprayed steel plate

Door

Outer door: cyclopentane integral foam outer door*2

Inner door: sprayed steel plate door*4

Consumption: 909W

Power Supply: AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)

Casters: Yes

Shelf: 4

Standard Accessory: Test hole*2, USB interface

Optional Accessory: Temperature recorder, RS485 interface, outer door lock

Internal Size(W*D*H):

Upper Chamber:720*649*563mm

Lower Chamber: 720*649*563mm
