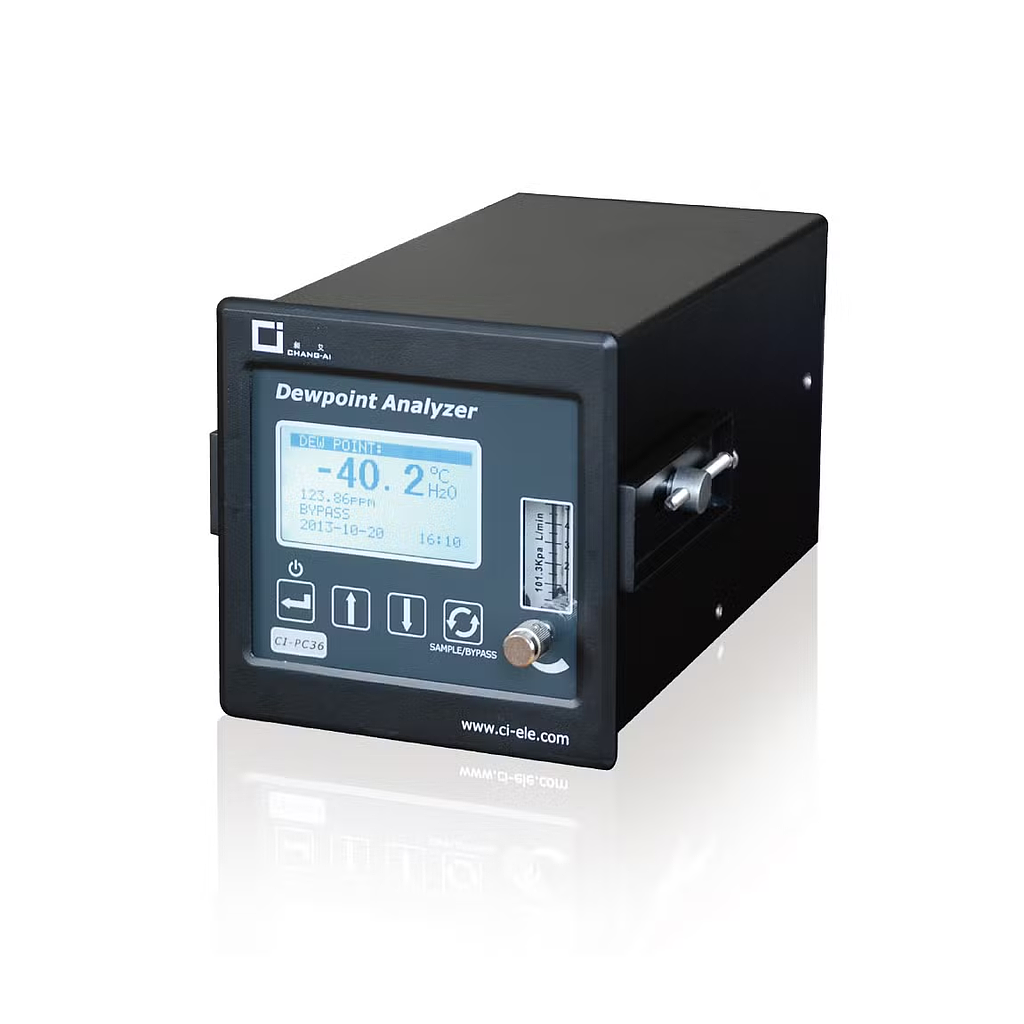

Chang AI CI-PC36 露点分析仪 (-100~+20°C)

Measure range:-100~+20°C

Accuracy: ±3°C(-80～-60°C); ±2°C(-60～+20°C)

Repeatability: ±0.5°C

Zero drift: ±1% FS/7d

Range drift: ±1% FS/7d

Response time: At the temperature of +20°C and pressure of 1bar,the range reaches 63% [90%]

-60→-20°C Td 5s[10s]

-20→-60°C Td 45s[10min]

Power supply: 85~264VA,50/60Hz

Environmenttemperature: 0~45°C Environment Humidity:<90%RH

Sampletemperature: 0~50°C

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

External control signal: 1 set,control signal:9~28VDC (optional)

Analog output: Standard configuration set of 4-20mA, 0-20mA and 0-10V can be set by menu

Communication: RS485(standard)/RS232(optional)

Alarm output: 2 sets

Relay contact point capacity: 24VDC,0.2A

Inlet and outlet: 1/4 inch NPT internal thread,standard 6.5 hose joint

Instrument size: W×H×D=144m×144mm×251mm

Installation hole size of instrument: L×W=136mm×136mm
