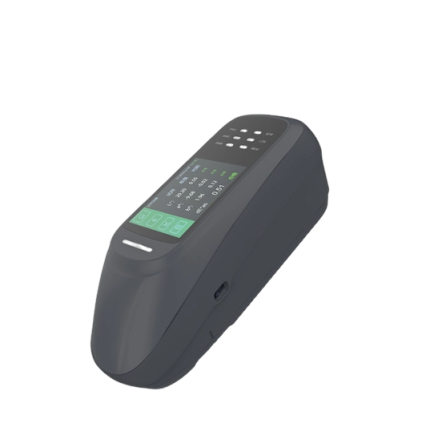

CHN SPEC DC-23d 便携式光谱仪 (D/8, dE*ab≤0.02, Φ11mm/Φ6mm)

Measuring structure: D/8,SCI+SCE

Light source life: 6 million times

Wavelength range: 360-740nm

SCI+SCE simultaneous measurement: Support

NetProf network calibration: Support

Calibration method: BCRA certified black and white board energy calibration, green board wavelength accuracy calibration

Measurement repeatability: dE*ab≤0.02

Inter-Instrument agreement: dE*ab≤0.25

Display accuracy: 0.01

Lighting source: Full-band balancedLED light source + xenon lamp

UV light source: Yes

Caliber: Φ11mm,Φ6mm

Measurement standard: Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGBcolor difference(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73, CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73)blackness (My,dM),stain fastness, discoloration Fastness, Tint (ASTM E313-00)color density CMYK(A,T,E,M),metamerism index Milm,Munsell, hiding power, strength (dye strength, tinting strength)

Light source conditions: A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Observation method: Camera

Calibration: Intelligent automatic calibration

Software support: Andriod,iOS,Windows,WeChat applet

Accuracy guaranteed: Guarantee first-level measurement qualification

Standard observer: 2°,10°

Integrating sphere diameter: 40mm

Standards: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectral method: grating

Sensor: Dual column high-precision CMOS array sensor

Wavelength interval: 10nm

Reflectivity measurement range: 0-200%

Reflectance resolution: 0.01%

Measuring time: About1s

Interface: USB,Bluetooth

Screen: Full color screen, 3.5 inches

Battery capacity: Can continuously measure on a single chargein 8000 times,7.2V/3000mAh

Language: Simplified Chinese, English

Storage: Instrument: 10,000 items; APP: Mass storage

Size: 233mm*77mm*93mm

Weight: About600g
