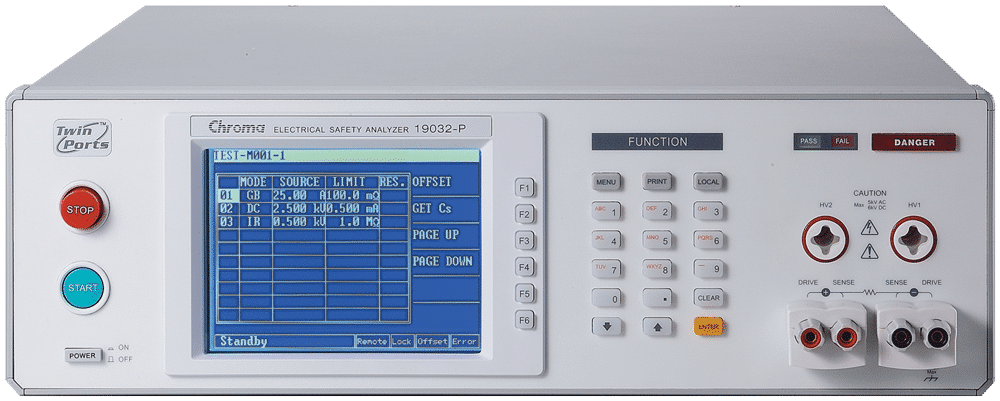

CHROMA 19032 Electrical Safety Analyzer (6kVDC, 5kVAC)

Mode : ACWV/DCWV/IR/GB/LC

Withstanding Voltage Test

Output Voltage : DC: 0.05-6kV; AC: 0.05-5kV

Load Regulation : ± (1% of reading +5V)

Voltage Regulation : 2V

Voltage Accuracy : ± (1% of reading + 0.1% of full scale)

Cutoff Current : DC: 12mA; AC: 40mA

Current Resolution : 0.1 μA DC; 1 μA AC

Current Accuracy : ± (1% of reading + 0.2% of full scale)

Output Frequency : 50Hz/60Hz

Test Time : 0.3-999 sec., continue

Ramp Time : 0.1-999 sec., Off

Fall Time : 0.1-999 sec., Off

Waveform : Sine wave

Insulation Resistance Test

Output Voltage : DC: 0.05-1kV

Voltage Resolution : 2V

Voltage Accuracy : ± (1% of reading + 0.5% of full scale)

IR Range : 0.1MΩ-50GΩ

Resistance Resolution : 0.1MΩ

Resistance Accuracy : 5% typical

Ground Bond Test

Output Current : AC: 1-30A

Current Accuracy : ± (1% of setting + 1% of full scale)

GR Range : 10mΩ-510mΩ

Resistance Resolution : 0.1mΩ

Resistance Accuracy : ± (1% of reading + 0.1% of full scale)

Test Method : 4 wires

Flashover Detection

Setting Mode : Programmable setting

Detection Current : AC: 20mA; DC: 10mA

Secure Protection Function

Ground Fault Interruption : -

Floating Output to Ground : -

Panel Operation

Lock : Present password

Interlock : YES

GO/NG Judgment Window

Indication/Alarm :

GO: Short sound, Green LED

NG: Long sound, Red LED

Data Hold

Memory Storage : 50 setups with up to 100 groups recall

Interface

Interface : 9 pin D-sub I/O control / RS-232 / GPIB (optional)

General

Operation Environment : Temperature: 0°C-40°C, Humidity: 20%-80% RH

Power Consumption :

No load: < 100 W

Rated load: 800 W

Power Requirements : 90-132Vac or 180-264Vac, 47-63Hz

Dimensions (H × W × D) : 133 × 430 × 470 mm / 5.24 × 16.93 × 18.66 inch

Weight : 25.5 kg / 56.17 lbs

Datasheet
