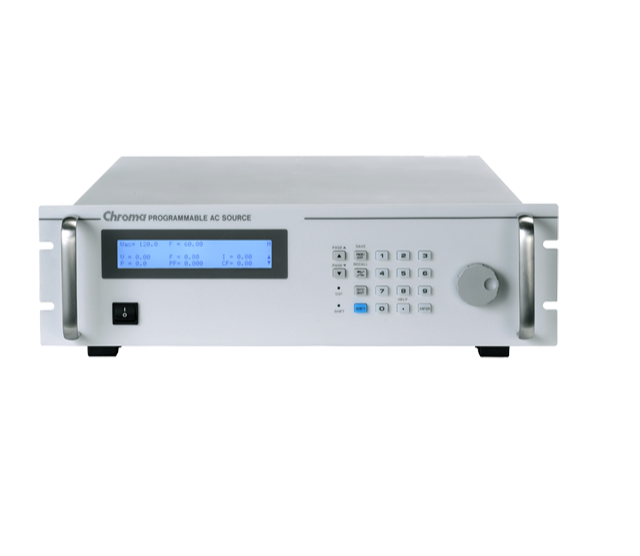

CHROMA 61601 Programmable AC Power Source (500VA)

Number of output phases: 1

AC Output

Power: 500VA

Voltage

Output voltage range: 150V/300V/Auto

Accuracy: 0.2%+0.2%F.S.

Resolution: 0.1V

Distortion:

0.3% @ 50/60Hz

1% @ 15-1kHz (Typical)

Line regulation: 0.1%

Load regulation: 0.2%

Maximum Current (per phase)

RMS 4A/2A (150V/300V)

Peak 24A/12A (150V/300V)

Frequency

Frequency range: DC, 15 ~ 1kHz

Accuracy: 0.15%

Resolution: 0.01 Hz

DC Output

Power: 250W

Voltage: 212V/424V

Current: 2A/1A (212V/424V)

Input Specifications:

Voltage range: 1Ø 100~240V±10%VLN

Frequency range: 47 to 63Hz

Current (per phase): 10A Max. @ 90V

Power factor: 0.97 Min

Measurement

Voltage

Voltage range: 150V/300V

Voltage accuracy: 0.2%+0.2%F.S.

Resolution: 0.1V

Current

Range (Peak): 24A

Current accuracy (RMS): 0.4%+0.3%F.S.

Current accuracy (Peak): 0.4%+0.6%F.S.

Power

Accuracy: 0.4%+0.4% F.S.

Resolution: 0.1W

Temperature Range

Operating: 0˚C to 40˚C

Storage: -40˚C to 85˚C

Safety & EMC standards: CE (include EMC & LVD)

Dimensions (H x W x D): 133.35 x 482.6 x 569.5 mm

Weight: 20 kg
