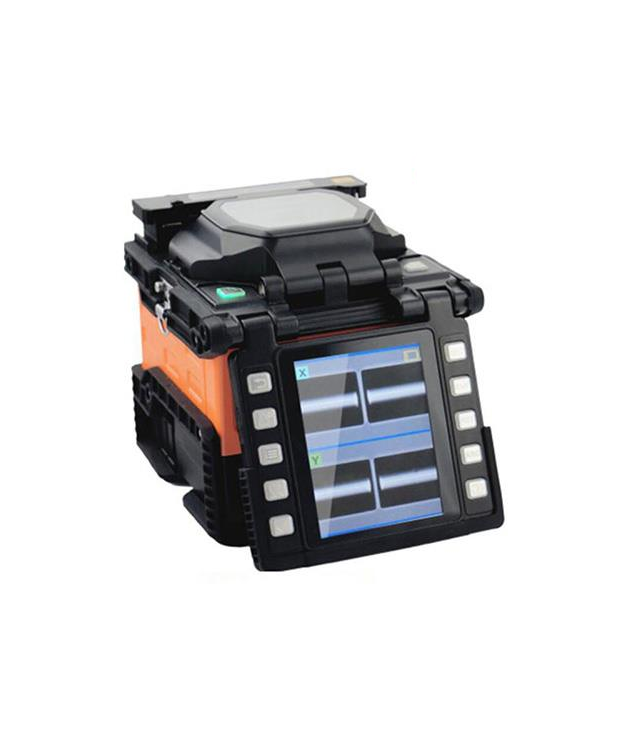

Comway C6 Fusion Splicer

Size: D156 x W135 x H149 mm, 1.8 Kg (2.2 Kg including battery)

Welding Technology: High precision PAS alignment

Type of fibers used: G.652, G.651, G.653, G657, G655

Welding mode: Single fiber

Fiber diameter:

Cladding diameter: 80~150 µm

Coating diameter: 100 ~1000 µm

Cutting length:

Cladding diameter 250 µm: 8~16 mm

Diameter greater than 250 µm: 16 mm

Welding programs: 100

Heating programs: 30

Welding time: Fast welding mode only 6s

Heating time: 12s

Stored images of welds: 30

Stored welding results: 20000

Welding loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS) and 0.04dB (NZDS), BI: 0.02dB

Reflection loss: > 60dB

Tensile force: 1.96 ~ 2.25 N

Display: 4.1 inch screen

Camera magnification: 350 times when displaying individual X or Y axis (Zoom mode: 700 times), 200 times when displaying both axes

Connection: High-speed USB

Electrode life: 5000 times

Power supply: AC100/240V, 50/60Hz

Battery capacity: 5600mAh, capable of welding more than 250 welds + heating.
