Specifications
Color: White
Weight: About 78.5kg
Outer dimension: 1380(L)*800(W)*1265(H)mm
Inner dimension: 400(L)*450(W)*490(H)mm
Electrical Specifications
Operating voltage: AC 100-240V,50/60Hz
Rated power: 15W
Pneumatic pressure: >5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance: 0.8～4GHz>70dB,4～6GHz>60dB (Without I/O interface)
Audio isolation performance: 100Hz～300Hz>25dB,300Hz～600Hz>30dB,Above 600Hz>40dB (1/3 octave)
Noise floor: 40dBA, exterior noise≤80dBA (No shock or vibration)

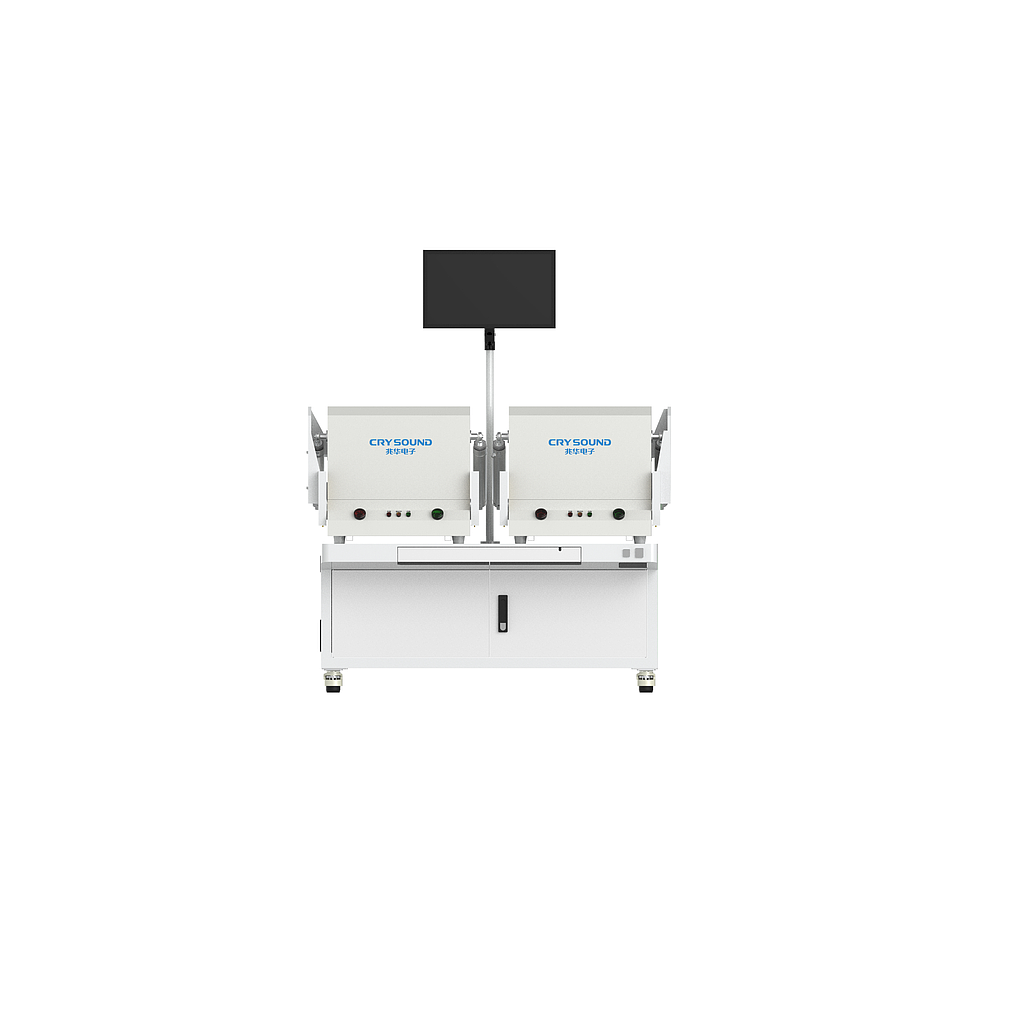

The CRY7865 is a high-performance, drawer-style soundproof test chamber designed for minimal noise and radio frequency interference. It is ideal for audio and noise measurements of wireless electronic devices, both on production lines and in laboratories.
When used in conjunction with electroacoustic and radio communication testers, the CRY7865 is well-suited for evaluating Bluetooth® headphones, Bluetooth® speakers, laptops, and more. Its drawer-style design facilitates integration into automated production lines, streamlining testing processes and enhancing efficiency.
