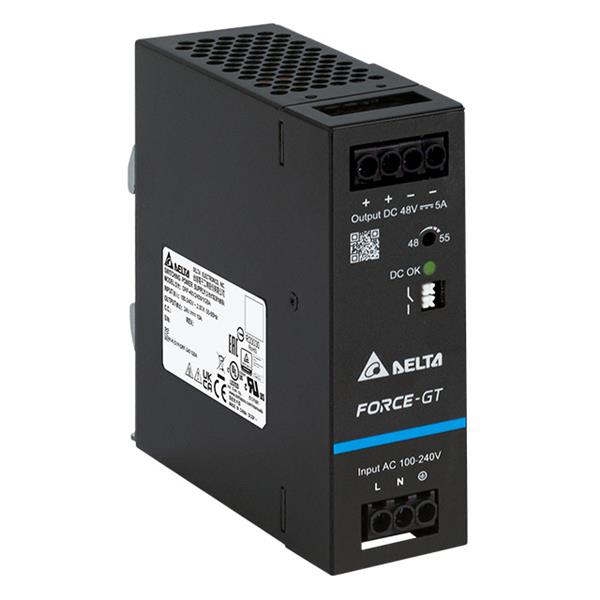

Delta Electronics, Inc. DRF-48V240W1GBA 开关电源 DIN导轨 PS 240W / 48V（涂层）

Width: 40 mm (1.575 in)

Height: 123.6 mm (4.866 in)

Length: 123.4 mm (4.858 in)

Industry: Industrial

Input Type: 1-Phase / Single Phase

Unit Weight: 640 g

Output Power: 240 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
