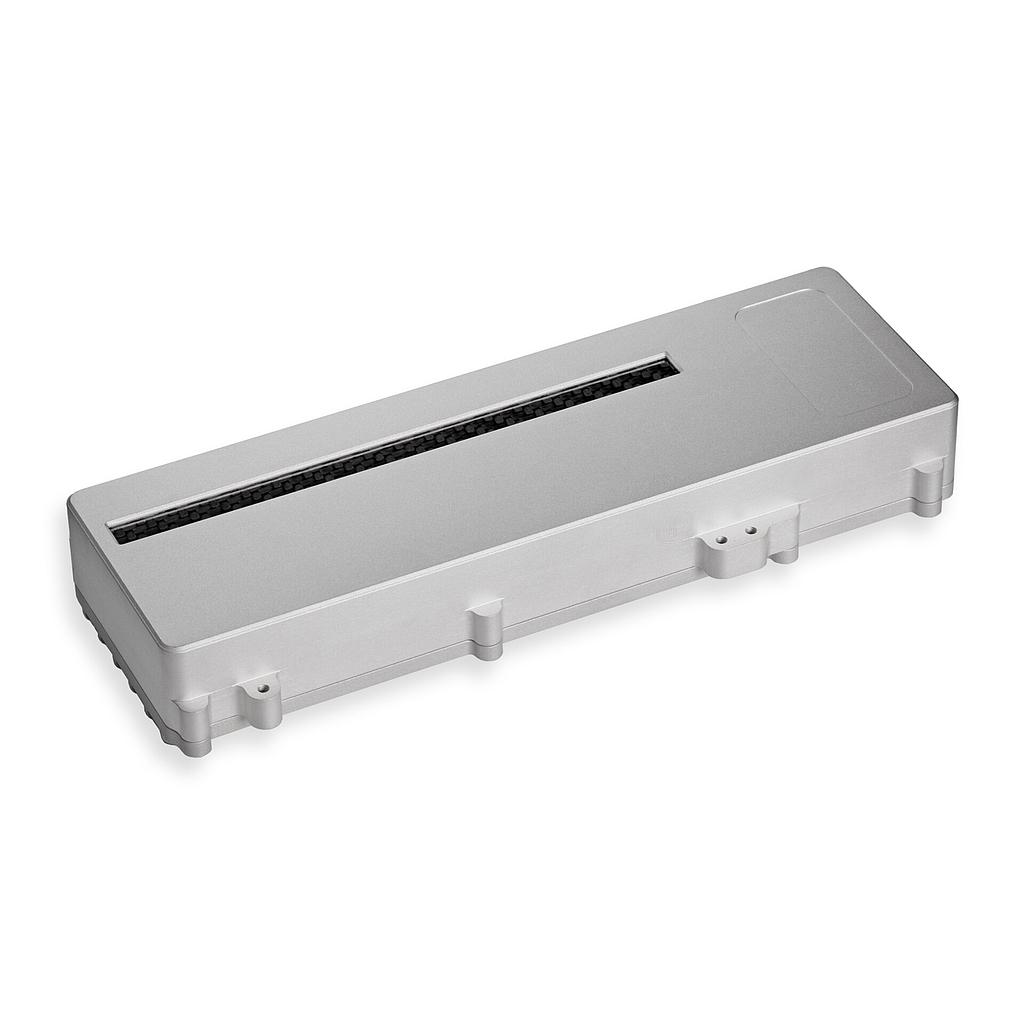

DT Detection Technology X-Panel 1501c FXM Flat panel detector (CMOS, 1484 x 72, 100 µm)

Technology:

Sensor: CMOS

Scintillator: CsI

Active area: 148 x 7

Pixel matrix: 1484 x 72

Pixel pitch: 100 µm

ADC: 14 bits

Interface:

Data interface: Gigabit ethernet

Max frame rate: Up to 500 fps

Mechanics:

Dimensions (H x W x D): 210 x 83 x 35 mm

Weight: 1.0 kg

Environmental:

Temperature: 10~40°C (operating); -10~50°C (storage)

Humidity: 20~60% RH (non-condensing)

IP rating: IP40

Power:

Dissipation: <7 W

Applications: Dental Panoramic

Datasheet
