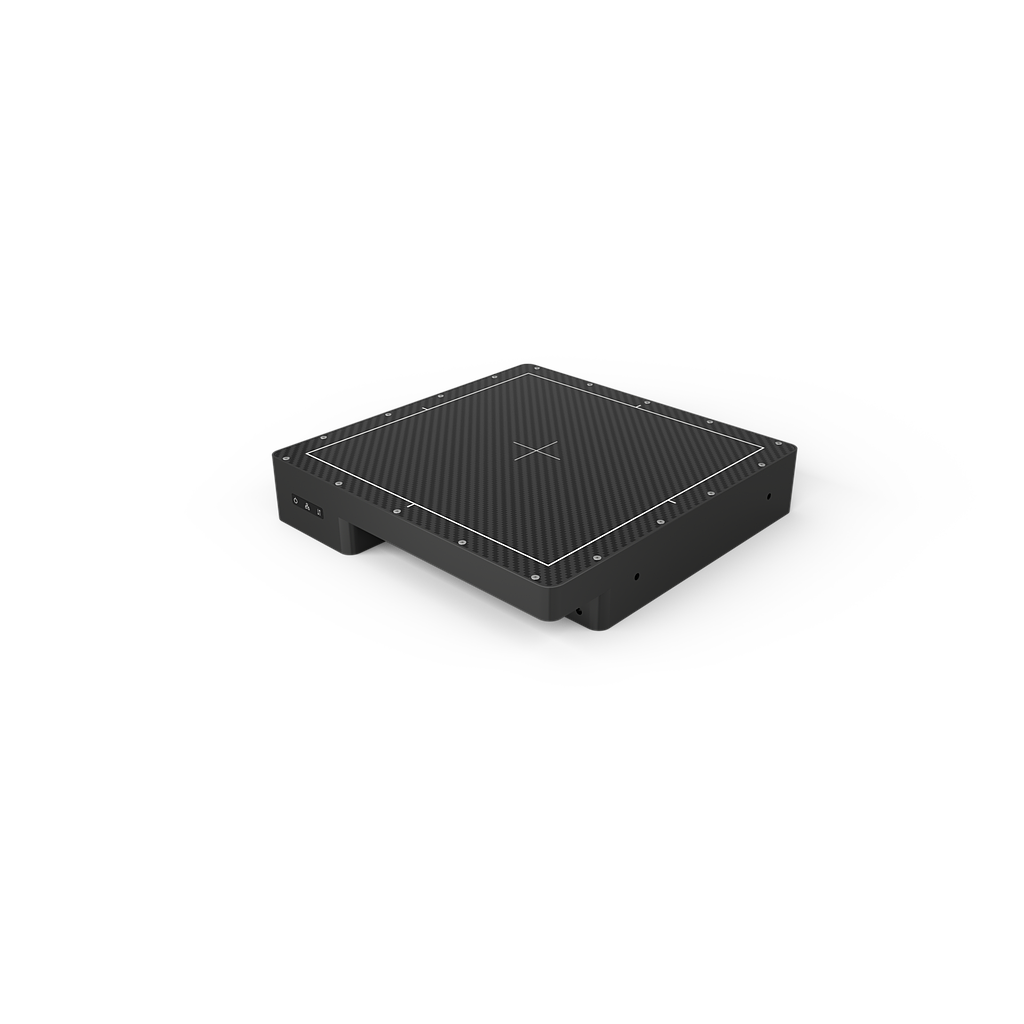

DT Detection Technology X-Panel 2121a FDI-CSV Flat panel detector (a-Si-TFT, 1024 x 1024, 200 μm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 204 x 204 mm

Pixel matrix: 1024 x 1024

Pixel pitch: 200 μm

ADC: 16 bits

Interface:

Data interface: Gigabit Ethernet

Max frame rate: 30 fps (1×1)

Mechanics:

Dimensions (H x W x D): 241 x 241 x 45 mm

Weight: 2.9 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 9.5 W

Applications: Casting, pipe welding, pressure container
