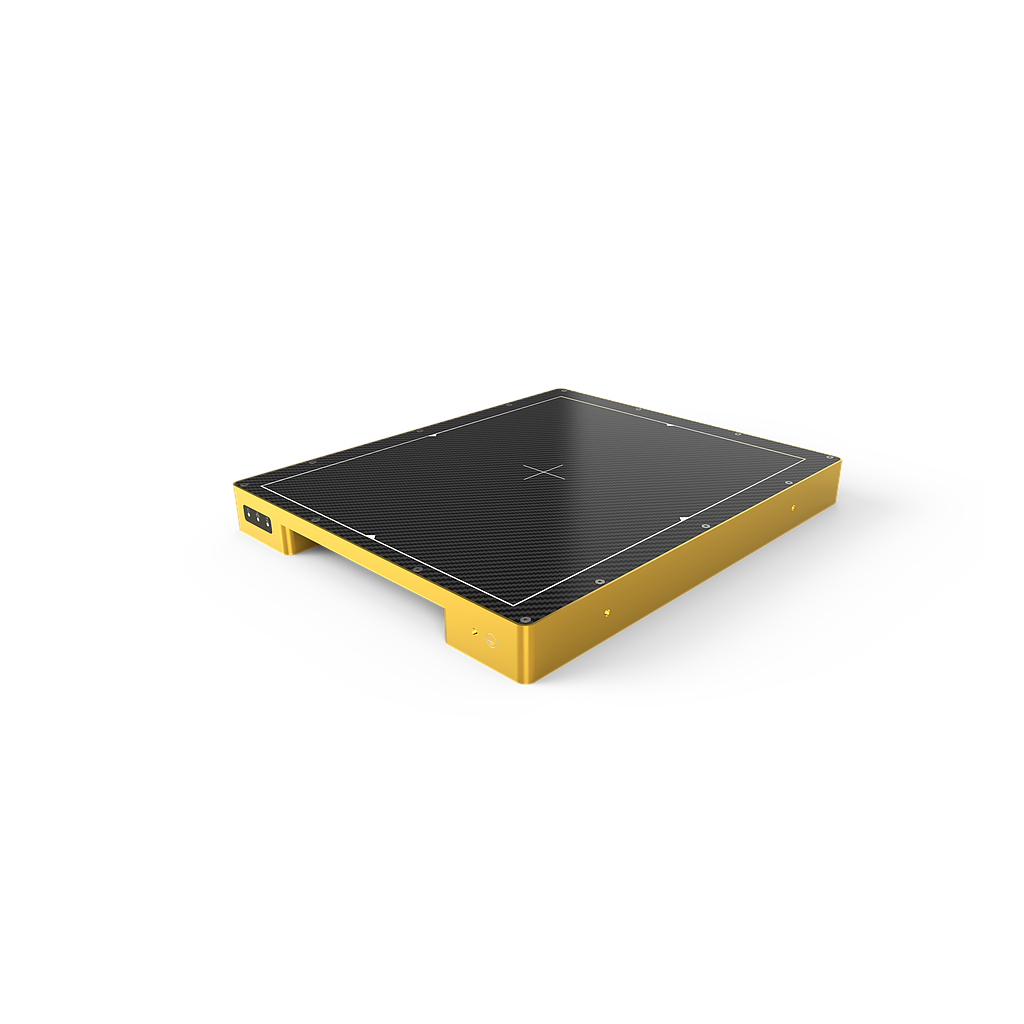

DT Detection Technology X-Panel 2530a FQI-CSV-X Flat panel detector (a-Si-TFT, 2432 x 3072, 100 μm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 243 x 307 mm

Pixel matrix: 2432 x 3072

Pixel pitch: 100 μm

ADC: 16 bits

Interface:

Data interface: 2.5 G Ethernet

Max frame rate: 15 fps (1×1) / 30 fps (2×2)

Mechanics:

Dimensions (H x W x D): 343 x 286 x 34.5 mm

Weight: 4.4 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 16.5 W

Applications: Battery inspections, electronics
