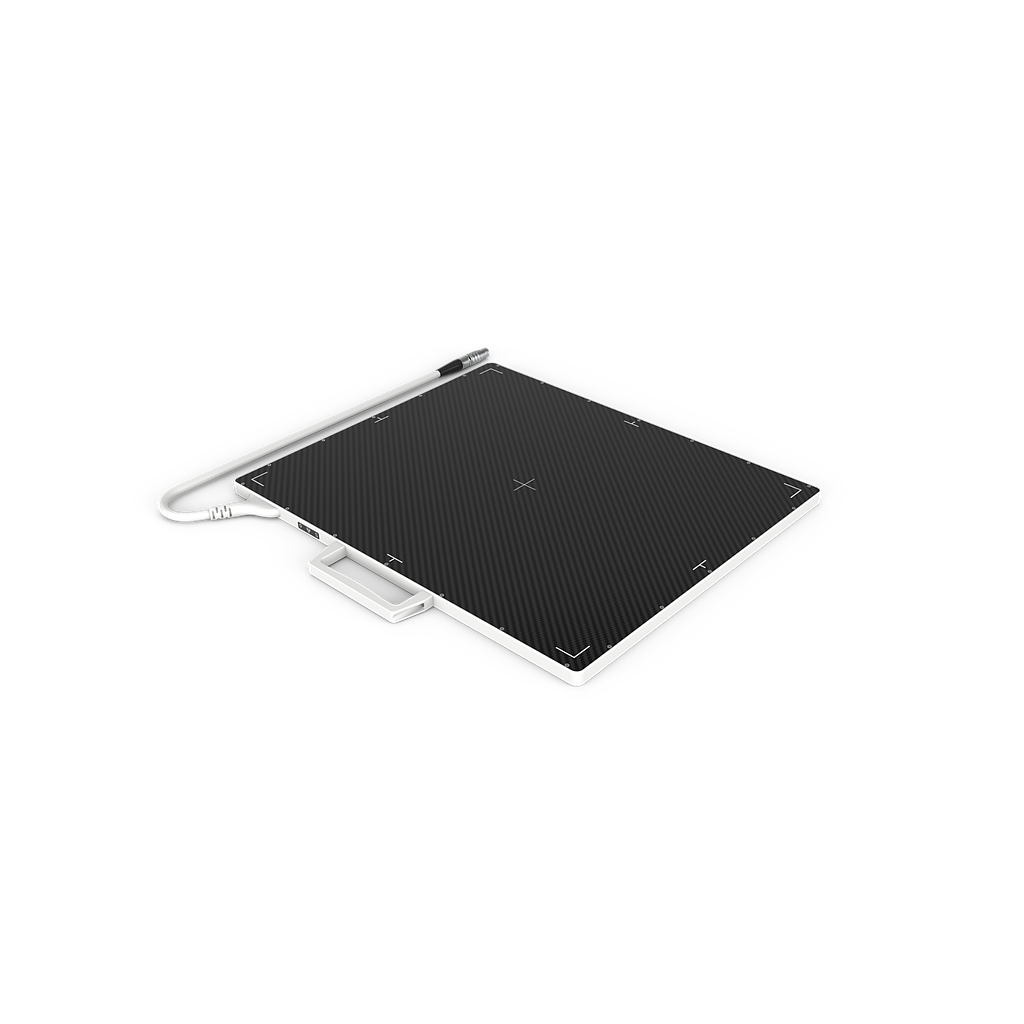

DT Detection Technology X-Panel 3543a PSM-CSV Flat panel detector (a-Si-TFT, 2500 x 3052, 140 µm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 350 x 427 mm

Pixel matrix: 2500 x 3052

Pixel pitch: 140 µm

ADC: 16 bits

Interface:

Data interface: Gigabit Ethernet

Max frame rate: ≤ 1 s

Mechanics:

Dimensions (H x W x D): 460 x 383 x 15 mm

Weight: 3.8 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IP41

Power:

Dissipation: 11 W

Applications: Portable DR
