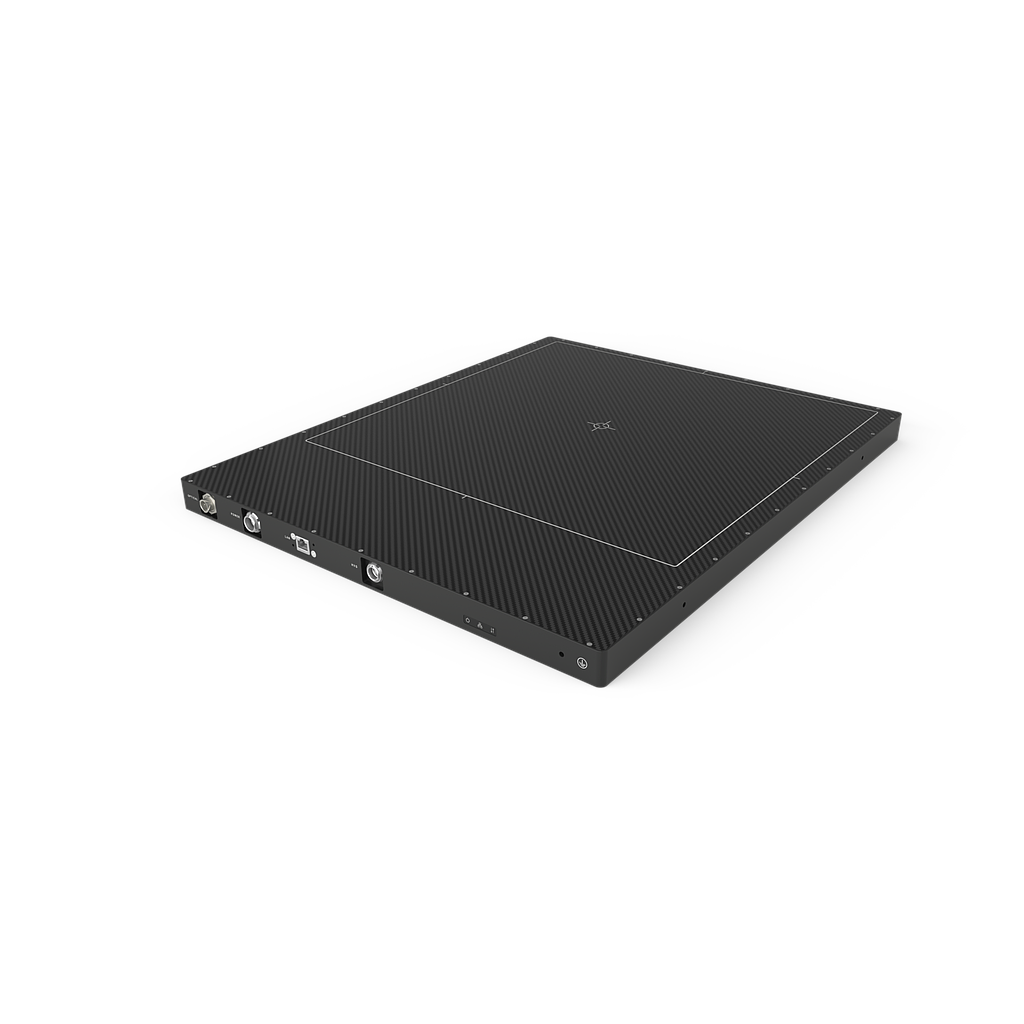

DT Detection Technology X-Panel 4343a FQM-GPG-UH Flat panel detector

Technology:

Sensor: a-Si-TFT

Scintillator: DRZ-Plus

Active area: 430 x 430 mm

Pixel matrix: 3072 x 3072

Pixel pitch: 140 µm

ADC: 16 bits

Interface:

Data interface: Optical Fiber

Max frame rate: 6 fps (1×1) / 12 fps (2×2)

Mechanics:

Dimensions (H x W x D): 476 x 580 x 30 mm

Weight: 8.5 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IP65

Power:

Dissipation: 17.5 W

Applications: Oncology, IGRT
