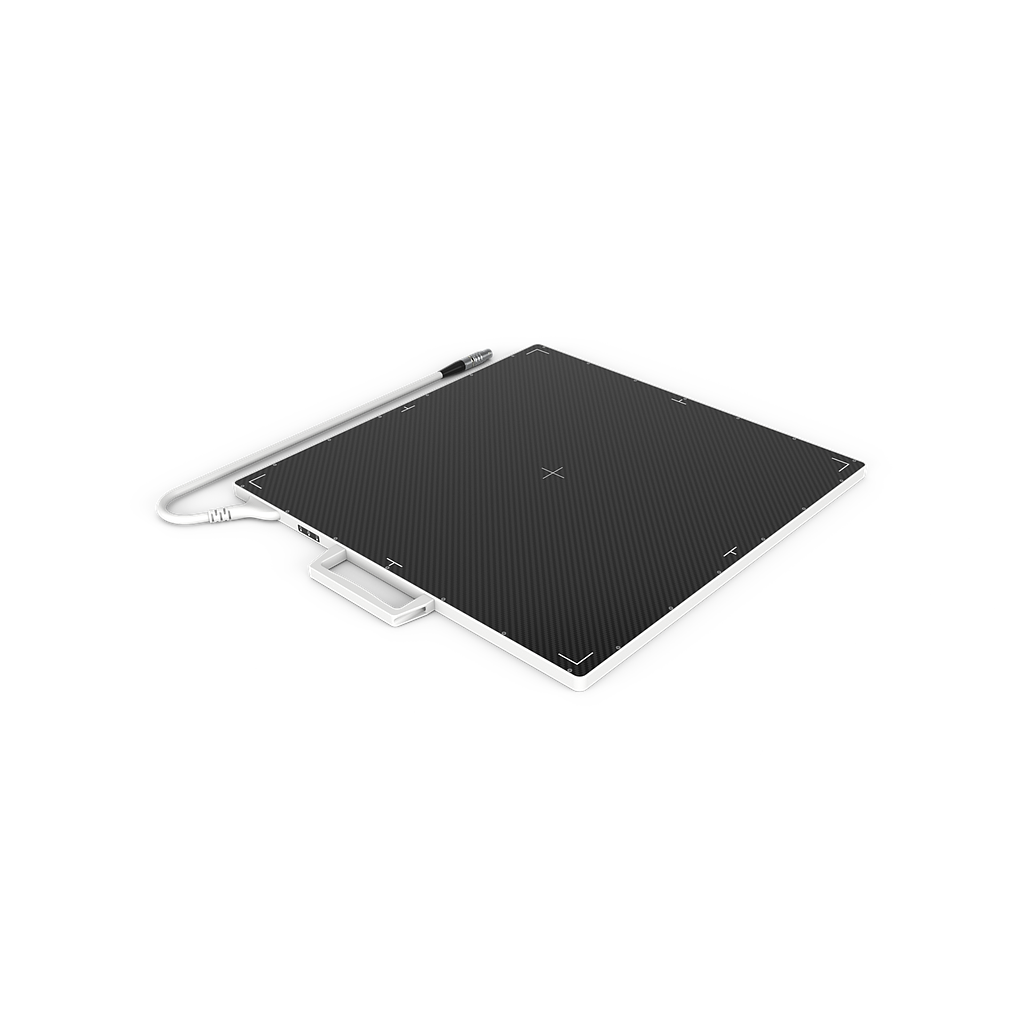

DT Detection Technology X-Panel 4343a PRM-CSV Flat panel detector (a-Si-TFT, 3072 x 3072, 140 µm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 430 x 430 mm

Pixel matrix: 3072 x 3072

Pixel pitch: 140 µm

ADC: 16 bits

Interface:

Data interface: Gigabit Ethernet

Max frame rate: 4 fps (1×1) / 8 fps (2×2) / 12 fps (3×3)

Mechanics:

Dimensions (H x W x D): 460 x 460 x 15 mm

Weight: 4.6 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IP41

Power:

Dissipation: 14 W

Applications: Portable DR
