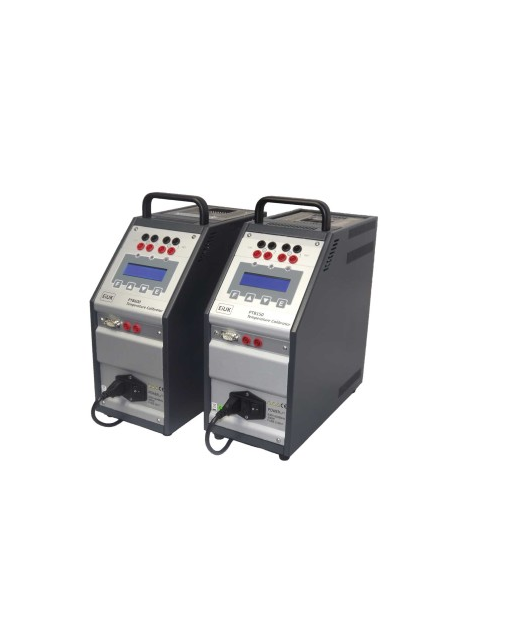

EiUK PTB150-TC 温度校准器 (-30 °C ~ 150 °C)

Temperature Range @ 20: -30 C to 150 °C ( -48 C from ambient)

Stability: ± 0.02 °C

Time to Stability: 10 min approx

Radial Uniformity: ± 0.02 °C

Axial Uniformity ( lower 40 mm): ± 0.08 °C

Accuracy ( Internal Sensor): ± 0.15 °C

Accuracy with External reference sensor TC VERSION ONLY*: ± 0.08 °C

Resolution: .1 °C / 0.01 °C selectable

Temperature units: C -F -K selectable

Inserts Diameter: 35 mm

Immersion Depth: 130 mm

Standard insert supplied: Ø3.5-4.5-5.5-6.5-8.5-10.5 mm

Heating Time: 20 °C/minutes

Cooling Time: 22 °C/minutes

Digital communication: RS232 ( USB converter)

Switch test Input: with automatic log of Open and Closed Temperature values

Thermocouple Input ( TC version Only)

Type: K,N,R,S,J,E

Range: -0 C to 1700 ° C

Accuracy: ± 1 °C Include CJC

Resolution: 0.1 °C / 0.01 °C selectable

RTD's Input ( TC version only)

Type: Pt100 IEC 3/4 wires

Range: -100 C to 700 C

Accuracy: ± 0.3 °C

Resolution: 0.1 C / 0.01 °C selectable

Voltage: 115 or 230 VAC, 50/60 HZ

Power: 300 VA

Weight: 8 Kg

Dimension: 160x340x330 mm
