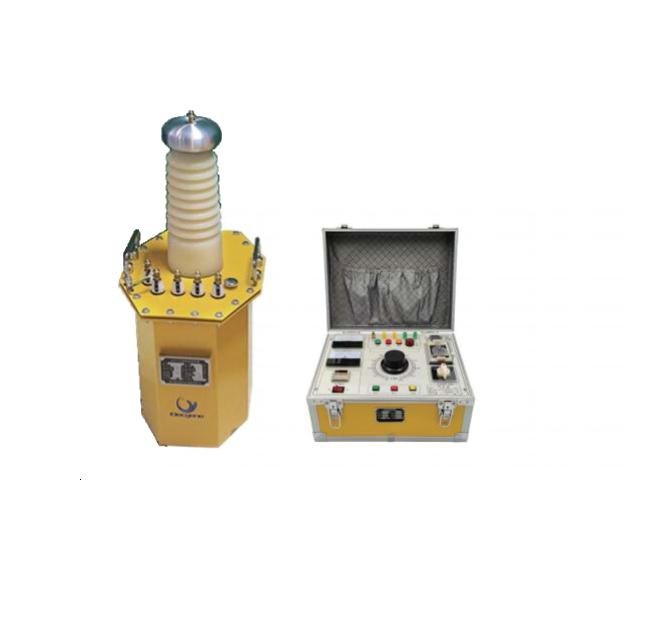

Elecgene YTB-20(3/50) High-Voltage Test System (3 kVA)

Rated capacity: 3 kVA

Power supply: 200~240VAC, 50/60Hz

Output high voltage: 0~50kV AC; 0~70kV DC (optional)

Output current: 0~60mA AC; 0~20mA DC (optional)

Ratio: 500

Insulation material: Insulating oil

Duty cycle: 5 min ON / 15 min OFF at 3 kVA

Control unit

Net weight: 19 kg

Net size: 440×340×230 mm

Transformer

Net weight: 37 kg

Net size: 305×245×630 mm
