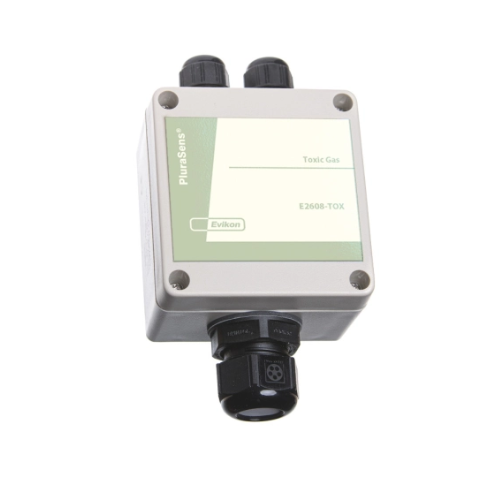

Evikon E2608-Cl2 氯气探测器 (0~10 ppm Cl2)

Calibration: chlorine Cl2

Sensor type: electrochemical

Sampling method: Diffusion

Detection range: 0...10 ppm Cl2

Resolution: 0.1 ppm Cl2

Sensor lifetime: 2 years

Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options

Digital interface: RS485, Modbus RTU protocol

Analog outputs: 2 × 4-20 mA / 0-10 V, user settable

Output relays: 2 × SPST relays (closing contact)

                       250 VAC / 30 VDC, 5 A max

Default alarm set-points: 0.5 ppm / 1 ppm Cl2

Enclosure: grey ABS plastic, wall mount, IP65

Dimensions: H85 × W82 × D55 mm

Operating conditions: -20...+50 °C, 15...90% RH
