Type: Single fiber and ribbon fiber
Cladding Diameter: 125um
Cleaved Length: Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable: Single fiber: 250um, 900um, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable
Typical Cleaved Angle: Less than 0.5 Degrees
Typical Blade Life Span: Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)
Operation Steps: 2 Steps
Reclaim Function: Blade pushback
Holder: Single: Universal holder / Ribbon: Replaceable holder

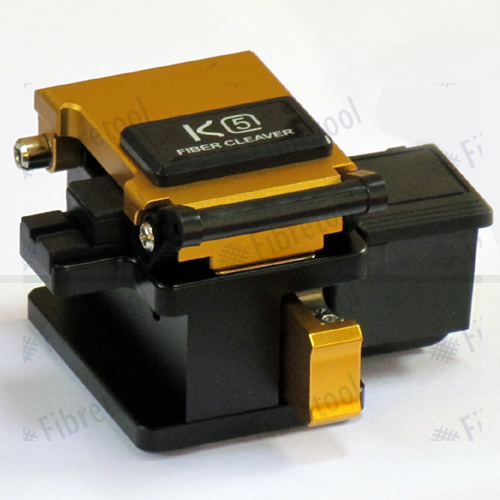

K5 High Precision Cleaver is an instrument for high precision fiber cutting. K5 can be installed with a variety of holders for ribbon cable up to 12 fibers as well as universal holder which is applicable to 250um, 900um, 3.0mm fiber cable and flat cable.
Work efficiency can be maximized with easy and simple 2 step operations.
