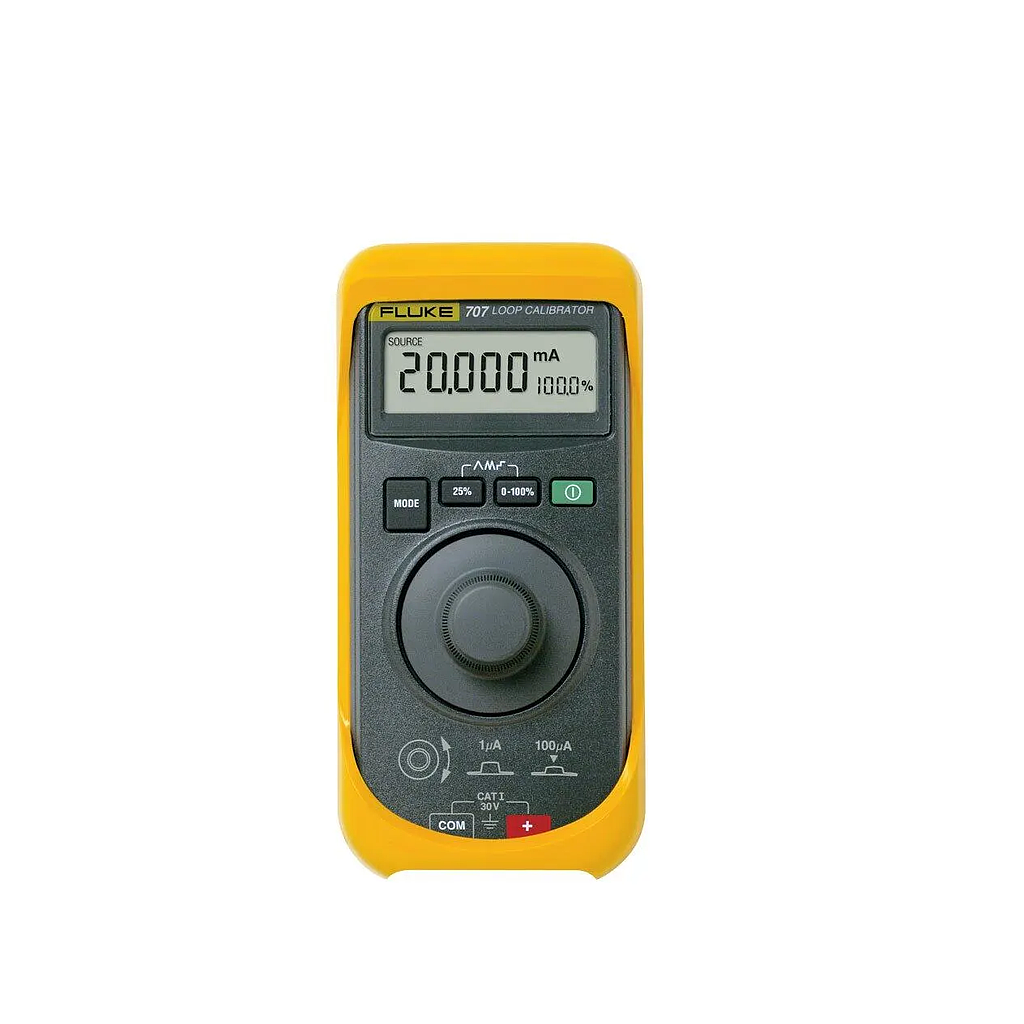

FLUKE FLUKE-707/APAC Current Loop Calibrator with Quick Click Knob (sourcing (0-20mA), measure (024mA/0-28V), Click Knob)

1. Voltage measurement :

- Range : 0 V to 28 VDC

- Resolution : 1 mV

- Accuracy : 0.015 % Rdg + 1 counts

2. Current measurement :

- Range : 0 mA to 24 mA

- Resolution : 0.001 mA

- Accuracy : 0.015 % Rdg + 2 counts

- Loop power while measuring mA : 24 VDC

3. Current sourcing :

- Range : 0 mA to 20 mA (optional) or 4 mA to 20 mA (standard)

- Accuracy : 0.015 % Rdg + 2 counts

4. General Specifications :

- Maximum voltage: 30 volts

- Non-operating temperature: –4 °C to 60 °C

- Operating temperature: –10 °C to 55 °C

- Relative humidity: 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)

- Power: 9 V battery (Source mode: 18 hours; 12 mA into 500 Ω; measure/simulate Mode: 50 hours)

- Size : With holster and Flex-Stand: 76.20 mm (W) x 158.75 mm (L) x 54.61mm (H)

- Weight : With holster and Flex-Stand: 349 g

Includes:

AC70A Alligator Clips

C10 protective yellow holster with Flex-Stand™

Instruction sheet

TL75 safety-designed test lead set

NIST- traceable calibration report and data

Datasheet
