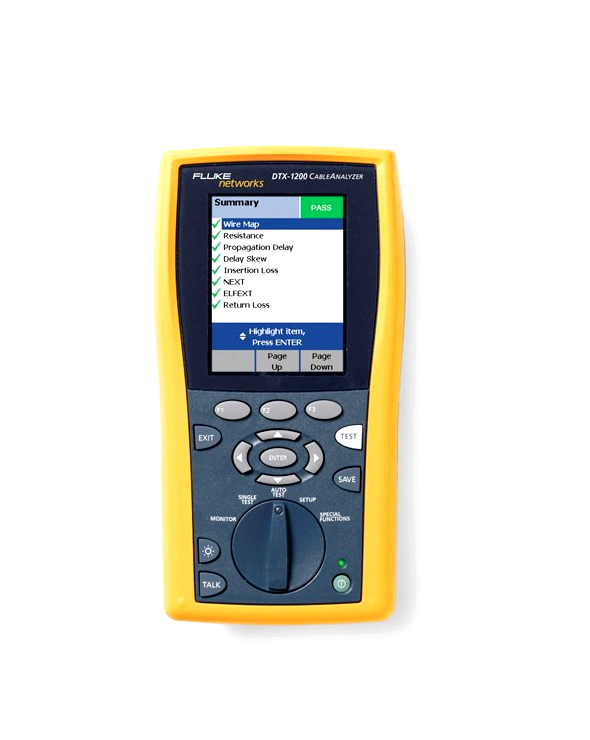

FLUKE DTX-1200 Digital Cable Analyzer

Cat 6 Autotest time (seconds): 9

Maximum bandwidth (MHz): 350

Accuracy level: IV

Color display: ﾕ

Stores graphical results data: ﾕ

Internal memory capacity (graphical Cat 6): 250

Removable memory card interface: ﾕ

Cat 6 graphical results for each of 32 MB multiple: 600

Lithium ion batteries ﾖ battery life: 12 hours

Advanced diagnostics: ﾕ

AC Wire Map capability: ﾕ

USB interface: ﾕ

Serial interface: ﾕ

Cat 6A permanent link adapter: ﾕ

Cat 6 channel adapter: ﾕ

Accepts resident fiber module: ﾕ

Start autotest at smart remote: ﾕ

Talk between main and smart remote: ﾕ

DTX Compact OTDR Module: option

Fiber Loss/Length Test Module (multimode, singlemode, or gigabit multimode): option

Fiber Compact OTDR Module: option

DTX 10 Gig Kit: n/a

Network Service Module: option

Patch Cord Test Adapters: option

Class F Adapters: n/a

Coax Cable Test Adapters: option

Multimedia memory card: option

USB cable: ﾕ

Serial computer interface cable: option

Talk headset: ﾕ

Carrying case: ﾕ

ﾕ = Feature or accessory is available in the standard product configuration

n/a = The feature is not available; the accessory is not applicable

option = The accessory can be purchased as an optional item.

Includes:

DTX-1200 CableAnalyzer with lithium-ion battery pack

DTX-1200 SmartRemote with lithium-ion battery pack

Two Cat 6A/Class EA permanent link adapters

Two Cat 6A/Class EA channel adapters

Two headsets

Carrying case

Two carrying straps

USB cable for PC communications

Two ac adapters

DTX Series CableAnalyzer Users Manual

DTX Series CableAnalyzer Product CD

LinkWare Software CD
