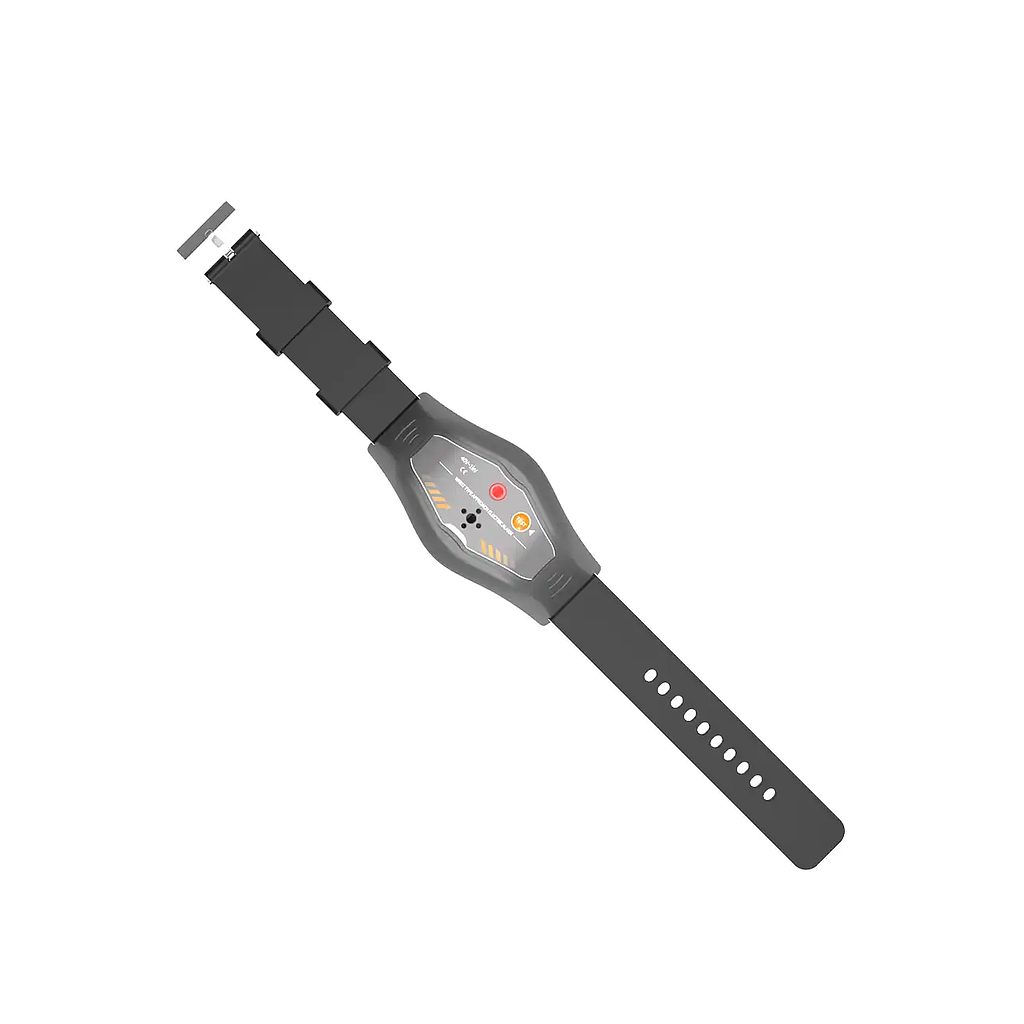

FUZRR ES9060AH Wrist Type High Voltage Static Alarm (1kV~500kV)

Alarm voltage range: 1 kV ~ 500 kV

Function: Near-power alarm, voltage detection

Power supply: CR2032 button battery

Power consumption: < 5 mA

Detection method: Non-contact

Starting mode: Auto start

Battery life: Standby time greater than 12 months

Alarm method: Sound and light reminder

Weight: 50 g

Meter size: (Wrist type) 80 mm × 42 mm × 30 mm

IP grade: IP65

Working temperature and humidity: -10°C ~ 40°C; below 80% RH

Withstand voltage: Tolerance of 1000 V / 50 Hz between the instrument line and the housing for 1 minute

Insulation: Between the instrument line and the housing ≥ 100 MΩ

Structure: Case insulation

Suitable for safety regulations: IEC 61010-1 CAT III 600 V, IEC 61010-031, IEC 61326, pollution degree 2
