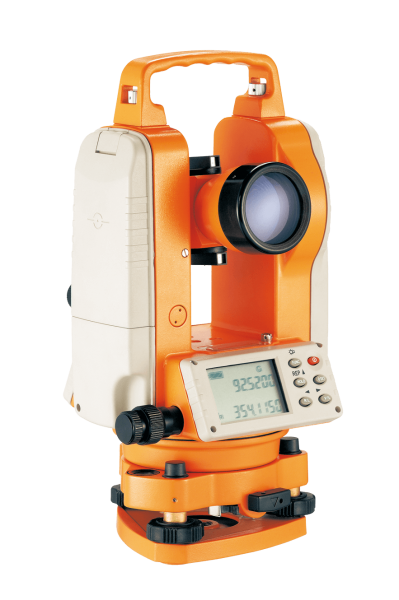

GEO-Fennel FET 420K Electronic Theodolite

Dust / water protection: IP 54

Focusing: 0.5 - ∞

Accuracy: 4 mgon (20'')

Weight: 4 kg

Optical plummet: 3 x

Measuring units: 400 gon / 360° / mil

Tripod: removable

Operating time: 35 h NiMH, 40 h Alkaline

Shortest focussing distance: 1.4 m

Circular bubble: 8' / 2 mm

Compensator: 2-axis compensator

Angle measurement: inkremental

Plate level: 30" / 2 mm

Temperature range: -20°C to +50°C

Power supply: NiMH / Alkaline

Telescope magnification: 30 x

Objective diameter: 45 mm

Minimum reading: 2 mgon (10'')
