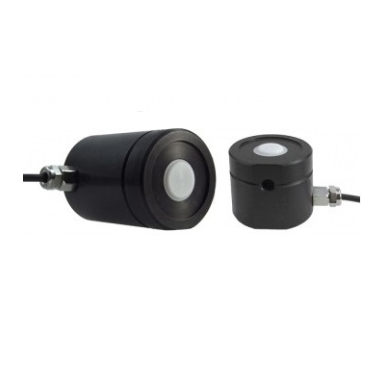

Gigahertz-Optik UV-3711-2 High Sensitivity broadband UV Irradiance Detector (Calibration data connector)

Spectral responsivity: UV-B 280-320 nm

Typical responsivity: 3 nA/(W/m²)

Max. signal current: 50 µA

Input optics: 11 mm Ø diffusor window

Input optics: Cosine FOV

Housing: 37 mm Ø, 50 mm height

Mounting: side M6 thread hole

Connector: coaxial cable 2 m Long, with calibration data connector (UV-3711-2)

min. signal current: depends on optometer

Datasheet
