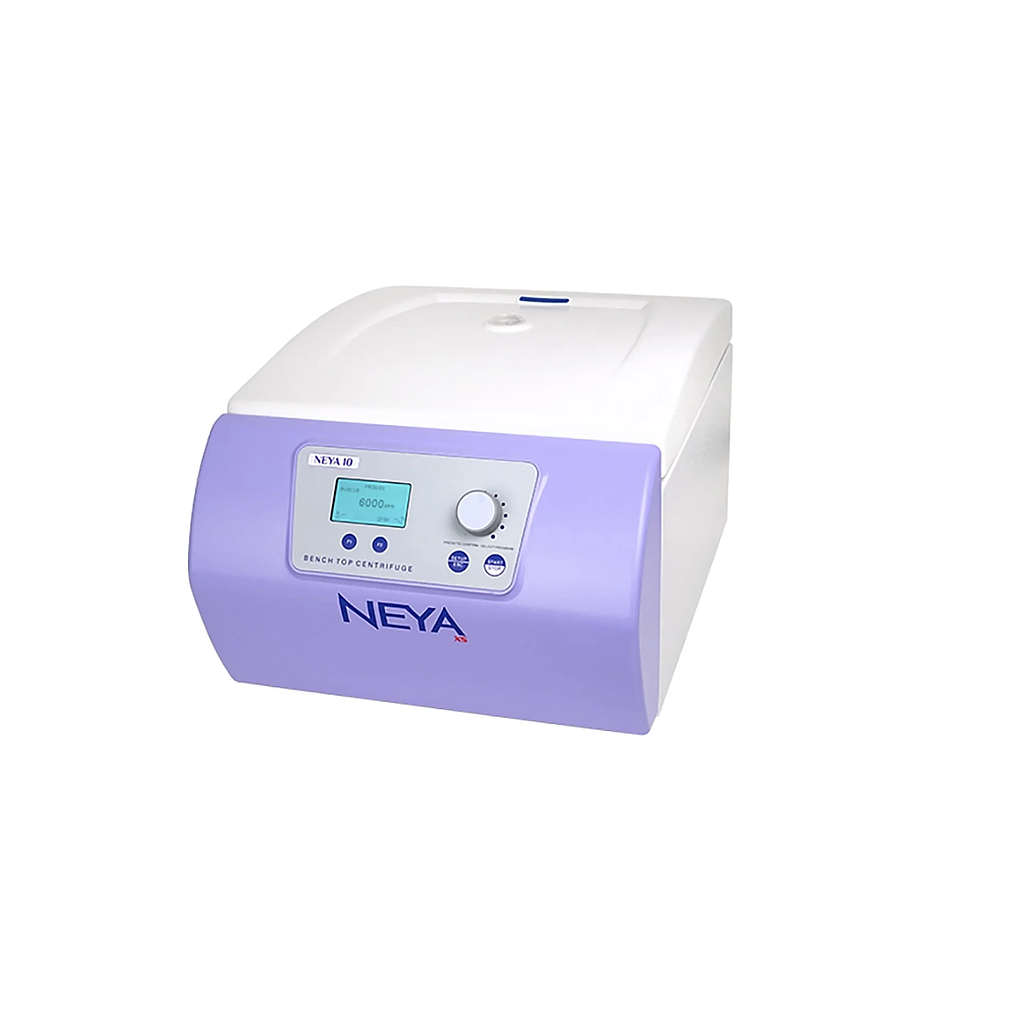

Giorgio Bormac NEYA 10 Centrifuge (4x175 ml, 6000 rpm, 10 Programmes)

Performance

Capacity max. (fixed angle rotor): 6 x 100 ml

Capacity max. (swing rotor): 4 x 175 ml

Acceleration ramps: 0 ÷ 9 (0 = min., 9 = max.)

Deceleration ramps: 0 ÷ 9 (0 = no brake, 1 = min., 9 = max.)

RCF max (fixed angle rotor): 4800 xg

RCF max (swing rotor): 3600 xg

Noise: 55 dB

Maximum speed with fixed angle rotor: 6000 rpm

Maximum speed with swing rotor: 4500 rpm

Features

Imbalance control: Yes

Time and date: Yes

RCF display: Yes

Spin function: Yes

RCF setting: Yes, from 50 xg to 4800 xg with steps of 50 xg

Rotor indication: Yes

Speed limiter: Yes

Programs: 10 programs with protection function

Control system: Microprocessor and backlit display

Timer: 00:30 ÷ 99:50 (mm:ss) and continuously hh:mm

Type of motor: Brushless induction

Max speed check: Yes

Feeds

Power supply: 220 V

Consumption: 500 W

Max. amperes: 1.6 A

Dimensions and weight

Entrance height: 275 mm

Dimensions (W x D x H): 450 x 590 x 330 mm

Dimensions height when open: 670 mm

Weight: 40 kg

Weight (with packaging, no rotor): 63 kg

Datasheet
