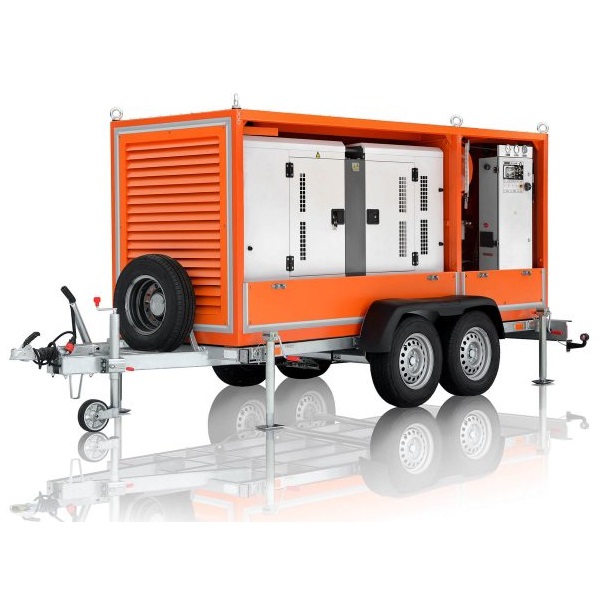

GlobeCore CMM-1H 由处理设备 (1m³/h; 25kW)

The СММ-1Н unit is designed for drying, heating and filtration of mineral transformer oil, as well as evacuation of transformer tanks.

Capacity in dehydration mode: 1m³/h

Oil heater power: 22kW

Max power consumption: 25kW

Moisture content: 10g/t (ppm)

Dielectric strength after processing: >65 kW

Nominal filtration fineness: 5 µm (optionally 1µm)

Electric power supply parameters: fully customizable

Dimensions (max, mm):

- Length without trailer/with trailer: 1250/3450

- Width without trailer/with trailer: 1225/1760

- Height without trailer/with trailer: 1490/1865

Weight without trailer/with trailer: 750kg/1400kg
