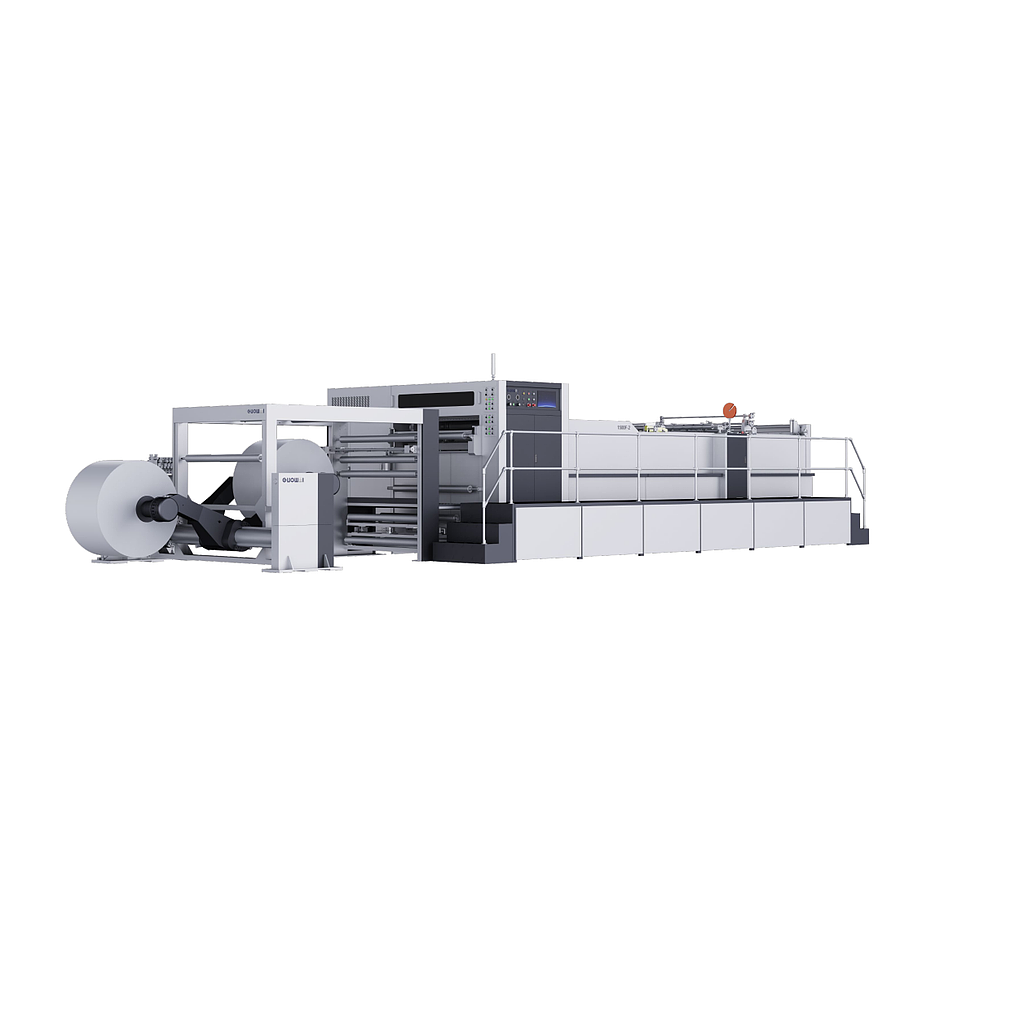

Guowei GDT1500-4 Servo Precision High Speed Sheet Cutter (45–550 g/m²)

Cutting type: Double rotary sheeter

Applicable range of paper: 45–550 g/m²

Max. paper roll diameter: 1800 mm

Max. paper-cutting width: 1500 mm

Range of cutting length: 450–1650 mm

Cutting sheet number: 2 sheet

Cutting precision (cutting length ≤1000 mm): ±0.25 mm

Cutting precision (cutting length >1000 mm): ±0.1%

Max. cutting speed: 350 cut/min

Max. feeding speed: 350 m/min

Max. paper stacking height: 1600 mm

Air pressure source requirement: 0.8 MPa

Power supply: 380 V × 50 Hz

Gross weight: 24000 KGS

Full-load power: 90 kW

Dimensions (L × W × H): 18600 × 4300 × 2350 mm
