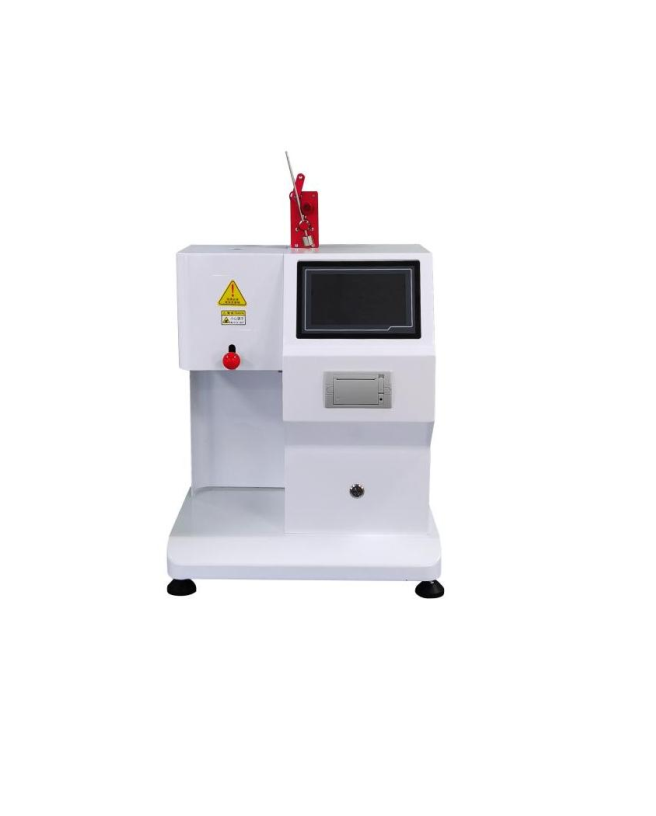

HAIDA HD-R804-2 Melt Flow Index Tester (40°C – 450°C, 0.1-150g/10min)

Temperature Range: 40℃-450℃

Temperature Drift: 4 hours≤0.5℃

Temperature Fluctuation: ±0.2℃

10mm-70mm Temperature Uniformity Above The Die: ±1℃

Temperature Display Resolution: 0.1℃

Time Display Resolution: 0.1S

Cutting Time Range: 1-999S adjustable

Die Diameter: Φ2.095±0.005mm

Outlet Length: 8.000±0.025mm

Piston Rod Diameter: 9.474±0.007mm

Piston Rod Length: 6.35±0.13mm

Charging Barrel Diameter: Φ9.550±0.007mm

Test Range: 0.1-150g/10min

Weight Accuracy: ±0.5%

Displacement Measurement Accuracy: 0.01mm

Volumetric Timekeeping Accuracy: 0.001S

Displacement Measuring Encoder: Omron photoelectric rotary encoder

Quality Method Test Range: 0.1-300g/10min

Volume Method Test Range: 50-5000cm3/10min (up to 5000 cm3/10min can be measured by plugging die)

Output Method: Miniature automatic printout

Cutting Method: Manual automatic cutting

Test Load A total of 8 levels: 0.325 kg, 1.200 kg, 2.160 kg, 3.800 kg, 5.000 kg, 10.000 kg, 12.000 kg, 21.6 kg
