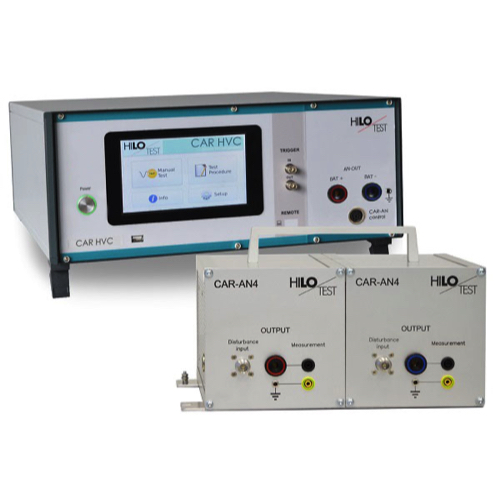

HILO-test CAR AN-HV EMC Test Equipment for Shielded HV Supply Lines (90 V – 264 V, 50/60 Hz)

Simulate various types of transients appear on the high voltage supply lines generated by the switching of various devices.

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Ethernet interface for remote control of the generator: Built-in

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Connector for external safety interlock loop: 24 V=

External red and green warning lamps (acc. to VDE 0104): 24 V=, 40 mA

Mains power: 90 V – 264 V, 50/60 Hz

Dimensions (desk top case, W × H × D): 450 × 180 × 500 mm³

Weight: 25 kg

Electrical Transient Conduction (according to DIN / ISO 7637-4)

Max. operating voltage: 1500 V

Load resistor (external): 500 Ω

Load capacitor: 10 µF

Battery capacitor: 100 µF

Residual voltage monitoring: Built-in

Ground switch: Built-in

Battery: Switchable on/off

Artificial Network

Series inductance: 5 µH, 50 A / 100 A

Load impedance: 0.1 µF + 50 Ω

Connectors for external load resistor, > 2.0 Ω: built-in

Impedance according to ISO 7637-4: type test
