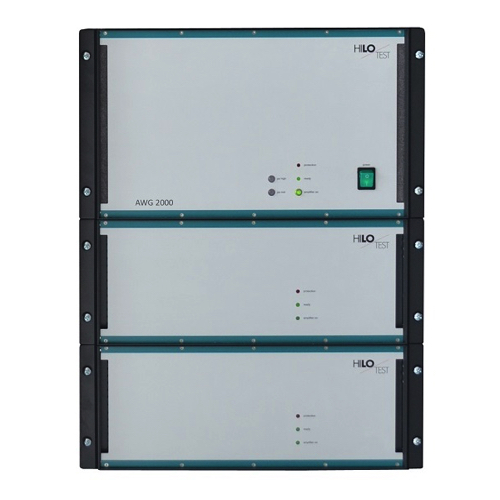

HILO-test CAR-AWG 2000 EMC-Test Equipment For Electrical Installation Of Vehicles (Max. 70V/-30V Vpeak / 75A)

Mainframe

Ethernet Interface: Built-in, for remote control of the generator

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA

Mains power: 400 V, 50 Hz

Dimensions (case, W × H × D): 16 HE rack

Weight: 100 kg

Amplifier

Type: 4-quadrant voltage and current amplifier

Power bandwidth: 200 kHz

Frequency range (small signal -3 dB): 1 MHz

Max. voltage: +70V/-30V

Max. current: ±75 A

Max. current (500 ms): ±150 A

Max. power: 2000 W

Selectable output impedance: 0 - 200 mΩ

Overvoltage protection: ✓

Voltage/Current monitoring: ✓

Slew rate: 70 V/µs

Small signal bandwidth: DC - 600 kHz

Residual noise output: <62 dBV; 10 Hz - 500 kHz

Signal/Noise output: >97 dBV; 10 Hz - 200 kHz

Cooling: Controlled fans and heat sink

Overcurrent protection: With CAR SYS magnetic and thermic

Triggering: With CAR SYS software / Manual / External

Trigger output: With CAR SYS for oscilloscope

Arbitrary Generator

Resolution: 14 Bit

Sample rate: 20 MSa/s

Max. points: 16 MSa

Segment types: DC, Sinus, Sine sweep, Ramp, Exponential function

Datasheet
