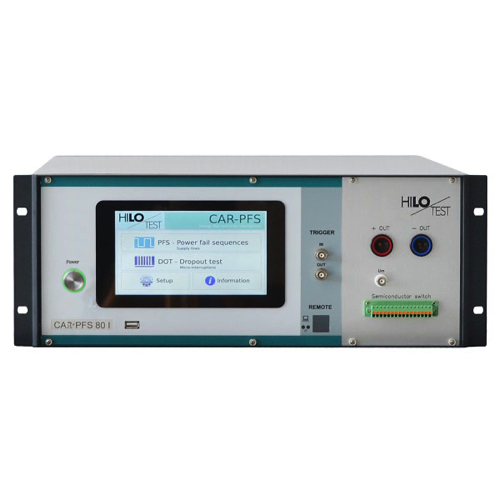

HILO-test CAR - PFS-80 II Automotive Power Fail Simulator (90 V - 264 V, 50/60 Hz; 100 A)

For performing fast voltage dips and drops (micro-interruptions) according to standard requirements, mainly from vehicle manufacturers.

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Ethernet Interface: Built-in, for remote control of the generator

Interface for saving reports: USB

External trigger input/output: no / 10 V

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA

Mains power: 90 V - 264 V, 50/60 Hz

Dimensions (desk top case, W × H × D): 450 × 180 × 500 mm³

Weight: 15 kg

Automotive Power Fail Simulator

E.U.T. voltage (maximum): 70 V DC

E.U.T. current (maximum): 100 A

Short circuit protection: Amplifier limited

Fall- and rise switching time: <1 µs

Rated current / Inrush current (maximum): >100 A

Monitor output for mains voltage and mains current: Built-in

Initialization time: 0 - 1000 ms

Wait time: 1 – 1000 s

Duration: 10 µs – 10 s

ES module: 8 electronic switches, 2 A, 70 V, <10 µs switching time

Short circuit protection: 2 A - T Fuse
