HILO-test HVM 2015 High-Voltage Measurement Equipment (10 kV)

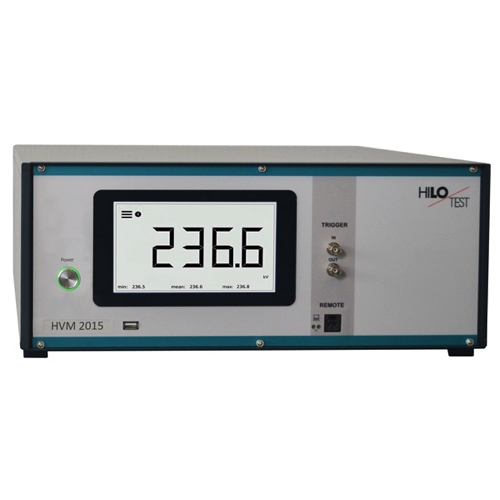

Mainframe

Microprocessor controlled touch screen: 5”, 800x480, 24 bit

Optical-Interface for remote control of the generator: optional

Interface for saving reports: USB

External trigger input/output: 10 V at 1 kΩ

Mains power: 230 V / 50 Hz / 10 VA

Dimensions of desk top case (W * H * D): 450 * 180 * 300 mm³

Weight: 5 kg

Direct high-voltage-input: 10 kV DC / 7 kV AC

External input (Ri = 1000 kΩ): 100 V ≡ 100 %

Calibration possibility of the preamplifier: ± 2 %

Analogue output (Ri = 5 kΩ): 5 V ≡ 100 % or 1 mA ≡ 100 %

Setting Parameter / Evaluation input voltage:

DC: Average

AC: + / - Peak / √2

Impulse: + / - Peak

Impulse: Reset

Measurement input: Intern / Extern

Time interval for storing the measurement value: 1s – 3600s

Resolution AD-converter: 12 Bit / 4096

Digital display: Autorange

Precision (AC/DC): 1.0 %

Precision (Impulse): 2.5 %

Bandwidth: 0 - 10 kHz

Environmental temperature: 17 °C - 23 °C
