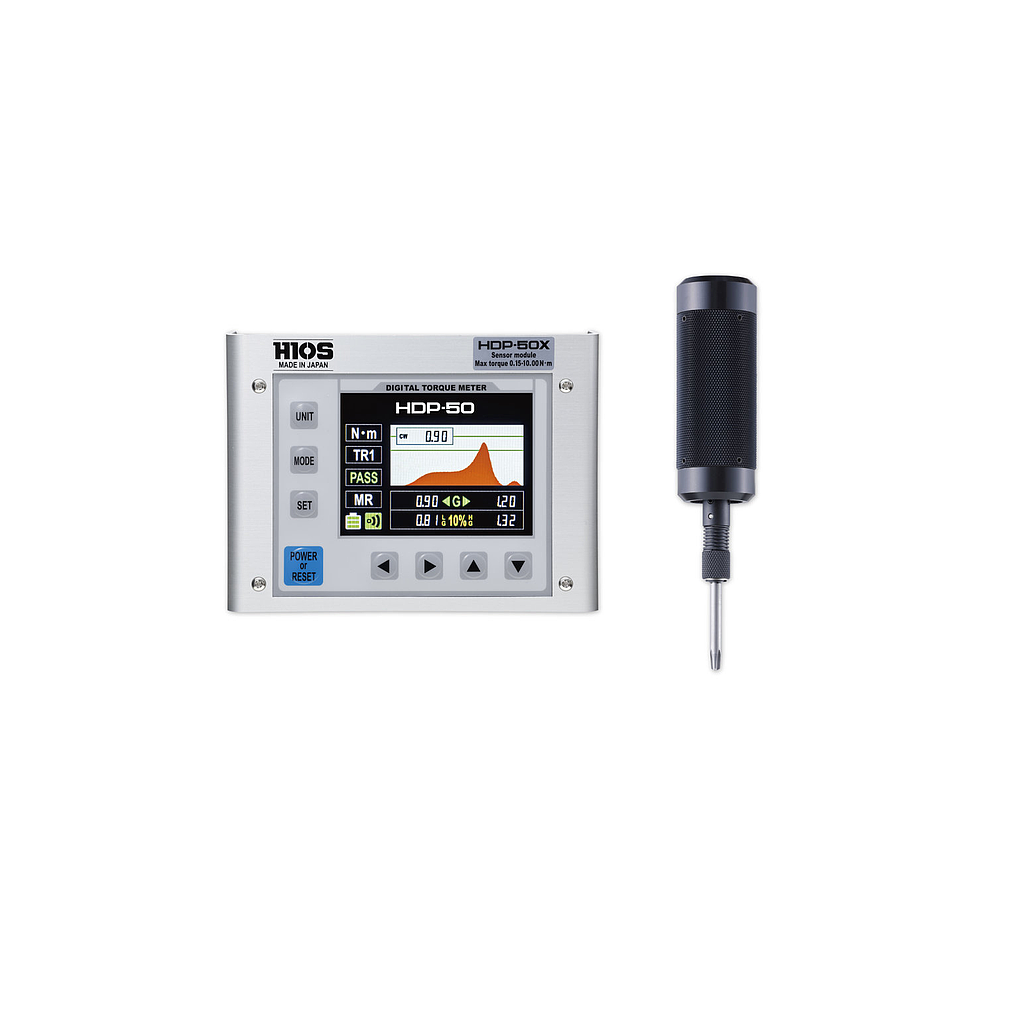

HIOS HDP-50X-R3-W Torque Meter (0.15-10 Nm, RS232C/ 1/4Hex bit)

Peak mesuring range

0.15-10 N・m

15-1000 lbf・in

Accuracy: Within ±0.5% (F.S.)

Measuring models: PEAK, F.PEAK (First PEAK), TR1 (torque waveform), TR2 (continuous torque waveform)

External Dimensions(mm):

Display unit: 134×100×36(H)

Detector: 140(L)×φ35

Weight(g):

Torque display: 495g

Detector: 216g

Detector Bit socket: 1/4HEX

Detector Cord: 2m

Charging time: 5h

Continuous operating time ona full charge:

Up to 2.5 hours

Charging via power adapter or PC via USB port

Battery life: About 500 charges

Exclusive battery charger:

Input：AC 100-240V (50 / 60Hz)

Output：DC 5V 10 A

Datasheet
