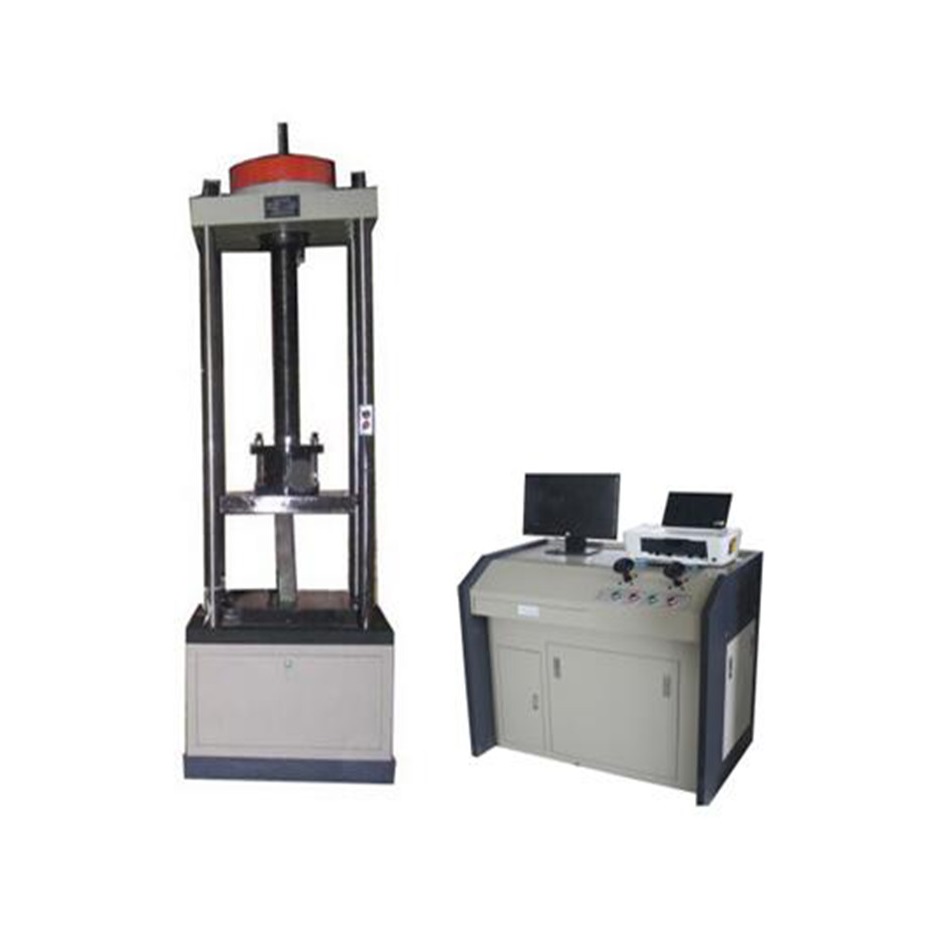

HST WYW-300 Microcomputer Controlled Constant Stress Exhaust Duct Pressure Tester (300KN)

1. Host structure: frame type

2. Maximum test force: 300KN

3. Test force accuracy: ≤ ± 1%

4. Operating system: computer control

5. Measuring range: 10% -100% of the maximum test force

6. Accuracy level: level 1

7. Accuracy of test force: better than ± 1% of indicated value

8. Force resolution: 0.1N

9. Piston no-load moving speed: 0 ～ 60mm / min;

10. Piston stroke: 200mm

11. Pressure plate size: 650 * 650 (can be customized according to customer needs)

Working conditions:

1. Within the range of 10 ~ 35 ° at room temperature.

2) In a vibration-free environment.
