Max. load: 2000kN/200Ton
Machine Class: 1 class
Range of test force: 4% ~100%FS
Indicating value accuracy: ±1%
Piston stroke: 200mm
Distance between platens: 360mm
Upper platen size: Φ300mm (Can be customized)
Lower platen size: Φ300mm (Can be customized)
Display: LCD Display Curves
Power supply: AC380V/50Hz/3 phase(can be customized)
Size: 640×560×1500 mm
Weight: 1500 kg
Main configuration:

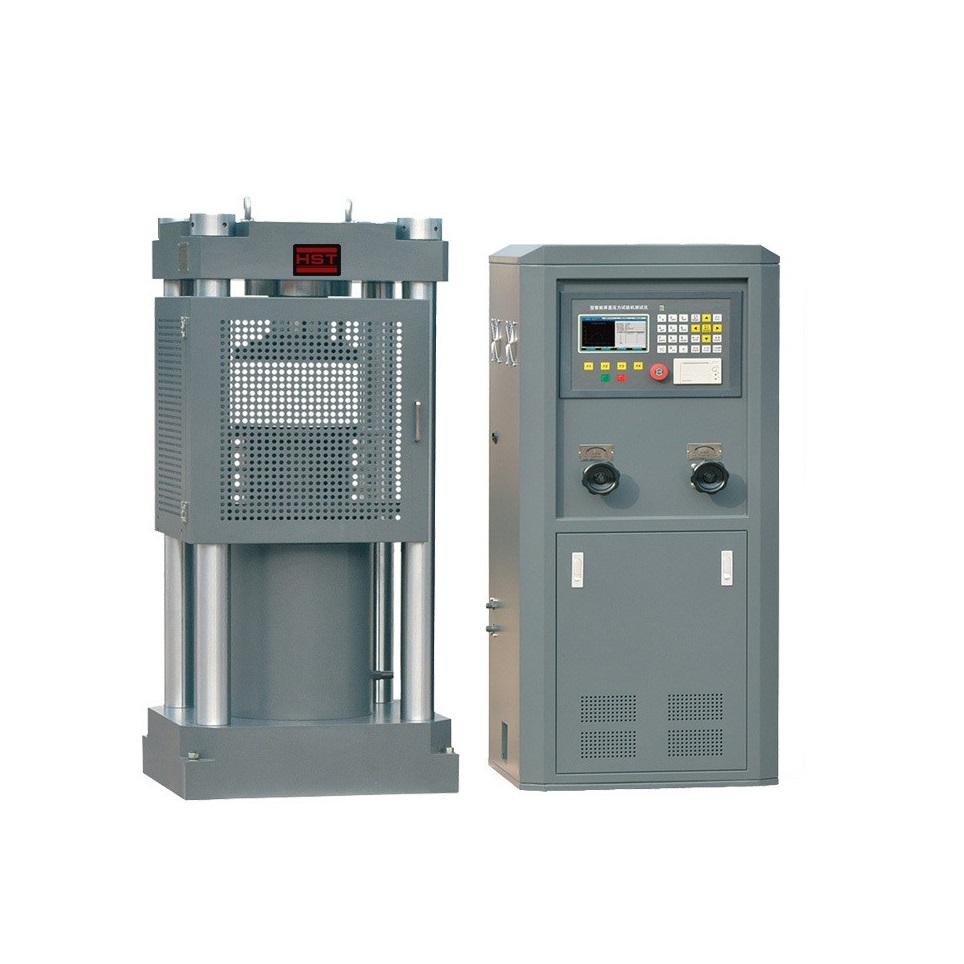

Main unit and oil source control cabinet 1 set
High precision compression sensor 1 pc
English version operate instrument 1 suit
Micro printers 1 set
Specialized compression attachment 1 suit
Accompany tools 1 suit
Accompany documents 1suit
Bending fixture Optional
