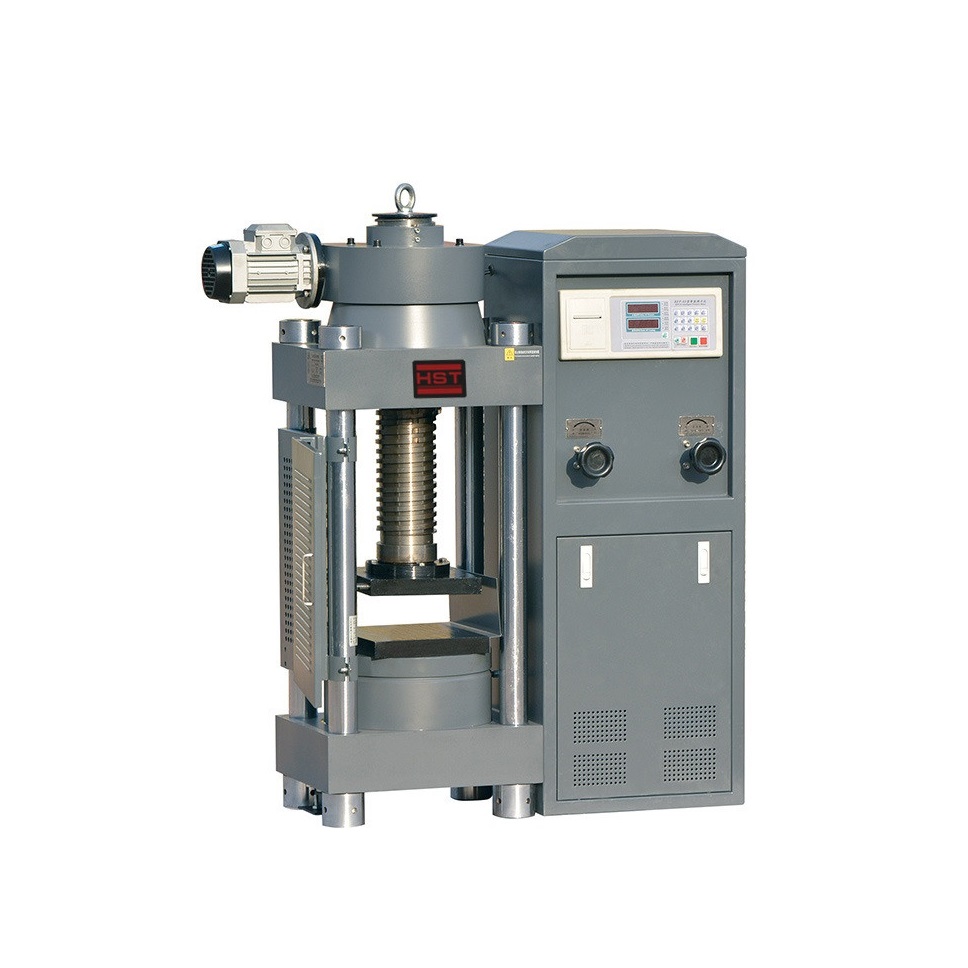

HST YES-2000D Digital Display Compression Testing Machine (2000kN/200Ton, AC380V)

Max. load: 2000kN/200Ton

Machine Class: 1 class

Range of test force: 4% ~100%FS

Indicating value accuracy: ±1%

Piston stroke: 50mm

Distance between platens: 320mm

Upper platen size: 240×240mm (Can be customized)

Lower platen size: 250×300mm (Can be customized)

Display: LCD

Power supply: AC380V/50Hz/3 phase(can be customized)

Size: 950×420×1350 mm

Weight: 950kg

Datasheet
